Explore Freeride Packages & Specifications
-
2024Freeride
Transportation and preparation not included.-
Deep Snow
- Live large, live free and go big.
- Rotax® 850 E-TEC® or 850 E-TEC Turbo R engines available
- tMotion™ XT rear suspension with rigid rear arm
- KYB Pro 40 EA-3 front shocks with lightweight springs
- Pilot DS 4 skis
![neo-mint]()

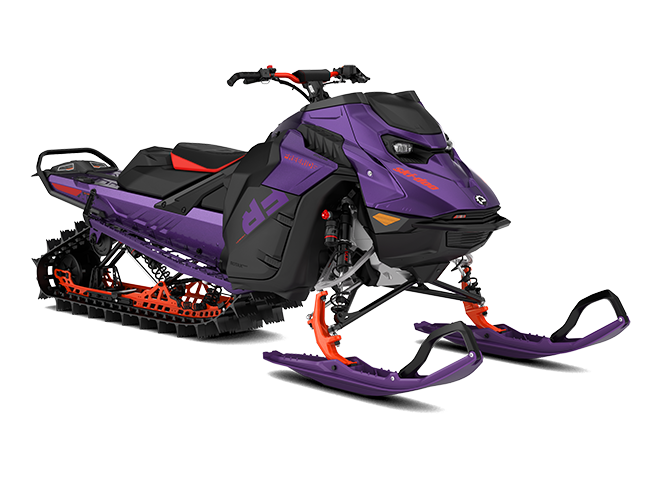

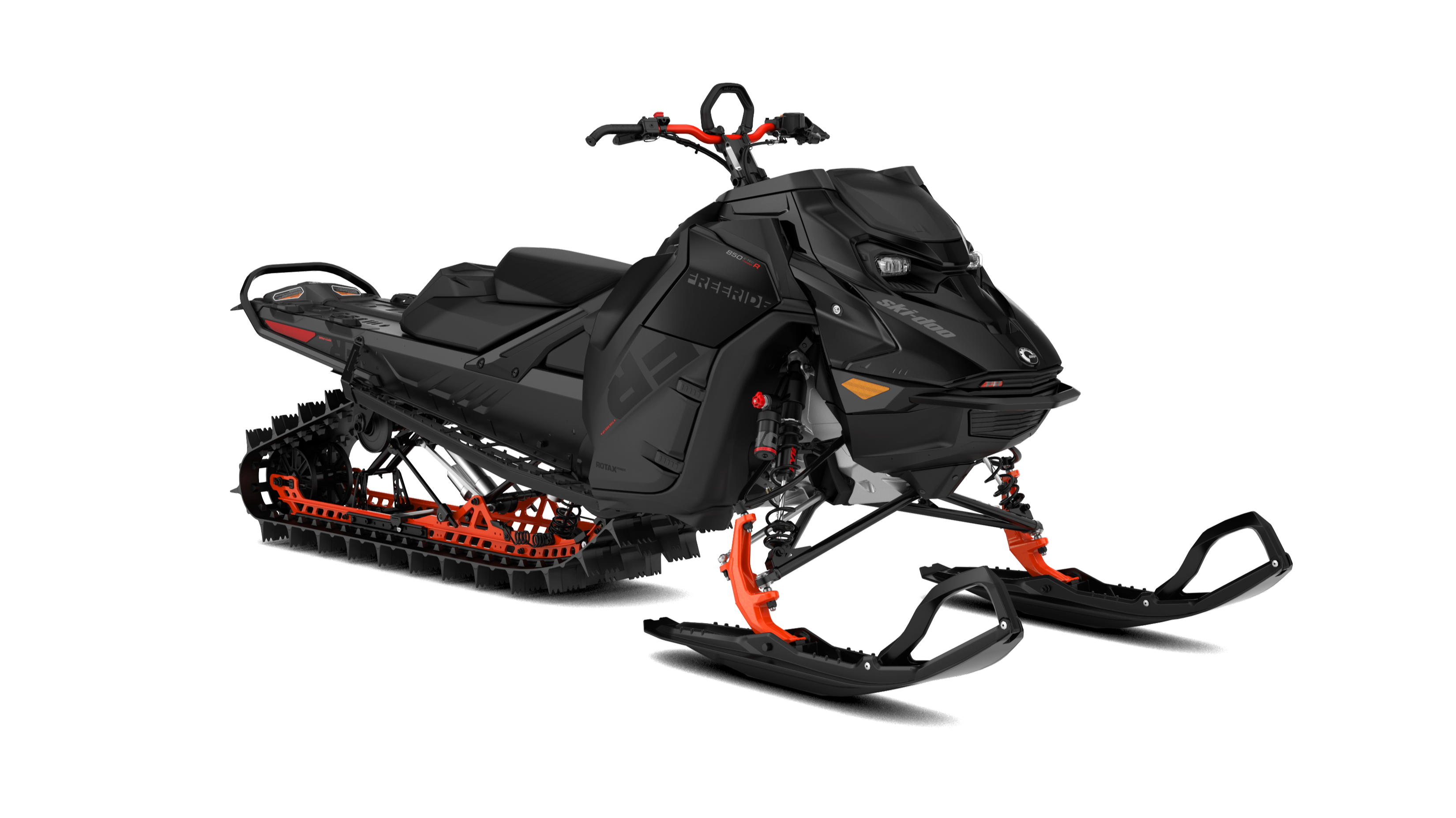

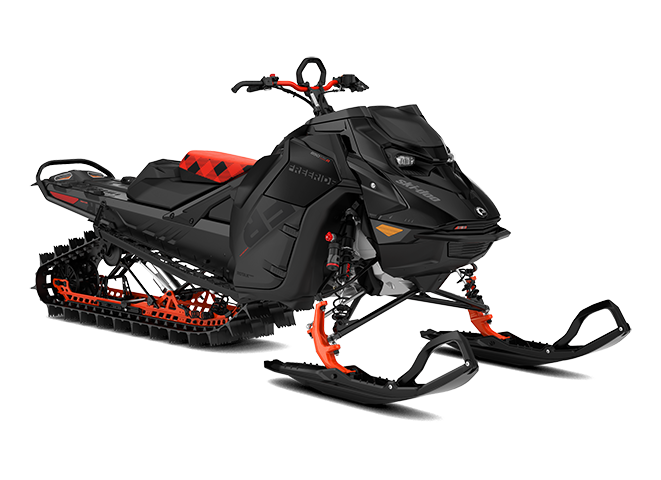

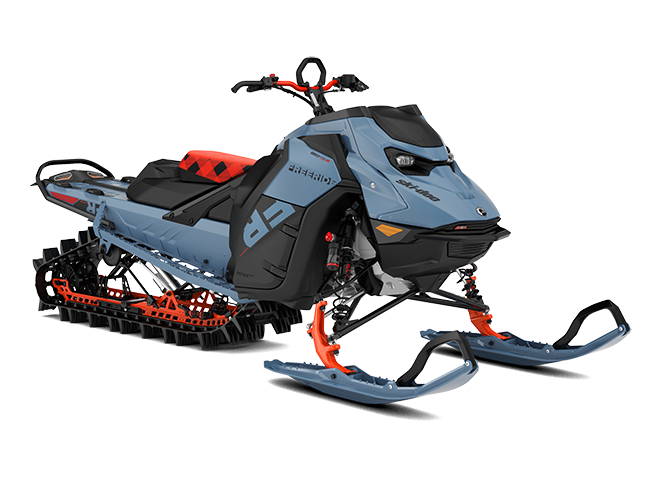

The Freeride is the deep-snow snowmobile built for riders who never look back. They go bigger and harder than the rest. Built with all-out style and capability for big drops and taking on the most intense terrain, there's no louder statement this winter.
-
Engine
Rotax® 850 E-TEC®, Rotax® 850 E-TEC® Turbo R
-
Rear suspension
tMotion XT with rail reinforcements
-
Front suspension
RAS™ 3
-
Track
PowderMax†, PowderMax† X-Light
-
Special features
10.25 in. color touchscreen display, E-TEC® SHOT™ starter standard, Pilot DS 4 skis, Short riser block, Premium LED headlights
Engine Engine - Rotax® 850 E-TEC Turbo R
Engine details - 850 E-TEC® : Liquid-cooled, two-stroke, eRAVE™
850 E-TEC® Turbo R : Liquid-cooled, two-stroke, turbocharged, eRAVE™
Engine Horsepower - 850 E-TEC® : 165
850 E-TEC® Turbo R : 180 up to 8,000 ft.
Cylinders & Displacement - 2 - 849 cc
Bore & stroke - 850 E-TEC® : 82 mm – 80.4 mm
850 E-TEC® Turbo R : 82 mm – 80.4 mm
Carburation - E-TEC® direct injection with additional booster injectors
Fuel tank / Octane - Premium unleaded - 91
Fuel tank - 36 L / 9.5 US gal
Oil tank capacity (2-stroke) - 3.4 L / 3.6 qt
Dry Weight - 850 E-TEC® : 445 lb (146 in.), 440 lb (154 in.), 444 lb (165 in.)
850 E-TEC® Turbo R : 463 lb (146 in.), 459 lb (154 in.), 463 lb (165 in.)
Power Train Drive clutch / Driven clutch - 850 E-TEC® : pDrive™ with clickers / QRS Vent Plus
850 E-TEC® Turbo R : pDrive™ with clickers / QRS Vent Plus
Drive Sprocket Pitch - 850 E-TEC® : 73 mm / 2.86 in. (146 in.), 89 mm / 3.5 in. (154 x 3.0 - 165 in.)
850 E-TEC® Turbo R : 89 mm / 3.5 in. (154 x 3.0 - 165 in.)
Dimensions Vehicle Overall Length - 3,058 mm / 120.4 in. (146 in.)
3,188 mm / 125.5 in. (154 in.)
3,299 mm / 129.9 in. (165 in.)
Vehicle Overall Width - 1,073 mm / 42.2 in.
Vehicle Overall Height - 1,395 mm / 54.9 in.
Ski Stance - 930 mm / 36 in. adjustable
Track Length x Width x Profile - PowderMax† : 146 x 15 x 2.5 in.
154 x 15 x 2.5 in
PowderMax† X-Light: 154 X 15 X 3.0 in.
165 X 15 X 3.0
Suspensions Suspension option - Standard
Front suspension - RAS™ 3
Front shock - KYB Pro 40 EA-3 w/ lightweight springs
Front suspension travel - 215 mm / 8.5 in.
Rear suspension - tMotion™ XT with rail reinforcements
Center shock - KYB Pro 40 EA-3 w/ lightweight spring
Rear shock - KYB Pro 40 EA-3
Rear suspension travel - 264 mm / 10.4 in.
Feature Frame - REV® Gen5
Skis - Pilot™ DS 4
Seating - Deep snow compact
Handlebar - Tapered U-shaped aluminum with J-hooks / Low grab handle
Riser block height - 120 mm / 4.7 in.
Starter - 850 E-TEC: SHOT, Electric (opt. Select models )
850 E-TEC Turbo: SHOT
Reverse - RER™
Brake system - Brembo
Heated throttle lever grips - Standard
Gauge - 4.5 in.digital
10.25" touchscreen (opt.)
Windshield - Optional
Runner / Carbide - Square 3/8 in. / 4 in.
Bumpers (Front / Rear) - Std / Std
-
Download spec sheet
