Explore Tundra Packages & Specifications
-

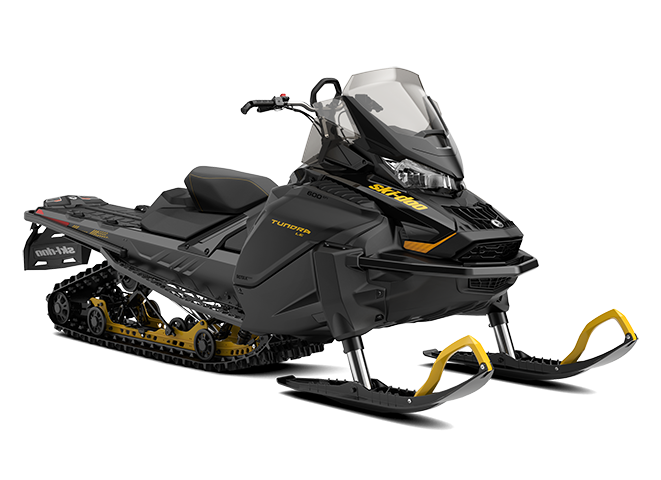

2025Tundra LE
Transportation and preparation not included.-
Sport-Utility
- On & Off Trail
- Great off-trail and deep snow performance with light-utility capability.
- Two Rotax® engines available
- SC™-5U articulating rear suspension with locking mechanism (no tool required)
- 154 in. track length
- LTS telescopic front suspension
![black]()
Deep snow, harsh winter conditions - it doesn't matter to the Tundra LE. Now on the REV Gen4 platform, riders can take on anything with ultra-responsive handling, superior flotation and versatile features, all powered by reliable Rotax engines.
-
Engine
Rotax® 600 EFI, Rotax® 600 ACE™
-
Rear suspension
SC™-5U
-
Front suspension
LTS
-
Track
Charger
-
Special features
Pilot™ DS 2 Skis
Engine Engine - 600 EFI
600 ACE
Engine details - 600 EFI : Liquid-cooled, two-stroke
600 ACE™ : Liquid-cooled, four-stroke D.O.H.C., dry sump
Engine Horsepower - 600 EFI : 85
600 ACE™ : 62
Cylinders & Displacement - 600 EFI : 2 - 599.4 cc
600 ACE™ : 2 - 600 cc
Bore & stroke - 600 EFI : 72.3 mm – 73 mm
600 ACE™ : 73 mm – 69.7 mm
Carburation - EFI
Fuel tank / Octane - Regular unleaded - 87
Fuel tank - 36 L / 9.5 US gal
Oil tank capacity (2-stroke) - 600 EFI : 3.4 L / 3.6 qt
600 ACE™ : 2.1 L / 2.2 qt
Dry Weight - 600 EFI-85: 483 lb
600 ACE™ : 507 lb
Power Train Drive clutch / Driven clutch - 600 EFI : pDrive™ / QRS
600 ACE™ : eDrive™ 2 / QRS
Drive Sprocket Pitch - 73 mm / 2.86 in.
Dimensions Vehicle Overall Length - 3,259 mm / 129.3 in.
Vehicle Overall Width - 994 mm / 39.1 in.
Vehicle Overall Height - 1,513 mm / 59.6 in.
Ski Stance - 813 mm / 32 in.
Track Length x Width x Profile - Charger:
154 x 16 x 1.5 in.
Suspensions Suspension option - Standard
Front suspension - LTS
Front shock - Motion Control
Front suspension travel - 150 mm / 5.9 in.
Rear suspension - SC™-5U
Center shock - Motion Control
Rear shock - KYB 36
Rear suspension travel - 239 mm / 9.4 in.
Feature Frame - REV® Gen4
Skis - Pilot™ DS 2
Seating - Trail narrow compact
Handlebar - Standard with J-hooks
Riser block height - 145 mm / 5.7 in.
Starter - Electric Starter
Reverse - 600 EFI : RER™
600 ACE™ : Mechanical
Air Radiator - Fan
Brake system - Brembo
Heated throttle lever grips - Standard
Gauge - 4.5-in. digital
Windshield - Medium
Runner / Carbide - Square 3/8 in. / 4 in.
Bumpers (Front / Rear) - Std / Heavy Duty with tongue type hitch
-
-
2025Tundra Sport
Transportation and preparation not included.-
Sport-Utility
- On & Off Trail
- Economical, nimble and fun light-utility vehicle.
- Two Rotax® engines available
- cMotion™ rear suspension
- 146 in. track length
- LTS telescopic front suspension
![neo-yellow-and-black]()
The Tundra Sport is packed with advanced, modern features at a value price like the responsive REV Gen4 platform, Rotax engines that offer class-leading efficiency and reliability and LinQ accessory options for convenient winter transportation.
-
Engine
Rotax® 600 EFI, Rotax® 600 ACE™
-
Rear suspension
cMotion™
-
Front suspension
LTS
-
Track
Cobra
-
Special features
Pilot™ DS 2
Engine Engine - 600 EFI
600 ACE™
Engine details - 600 EFI : Liquid-cooled, two-stroke
600 ACE™ : Liquid-cooled, four-stroke D.O.H.C., dry sump
Engine Horsepower - 600 EFI : 85
600 ACE™ : 62
Cylinders & Displacement - 600 EFI : 2 - 599.4 cc
600 ACE™ : 2 - 600 cc
Bore & stroke - 600 EFI : 72.3 mm - 73 mm
600 ACE™ : 73 mm – 69.7 mm
Carburation - EFI
Fuel tank / Octane - Regular unleaded - 87
Fuel tank - 36 L / 9.5 US gal
Oil tank capacity (2-stroke) - 600 EFI : 3.4 L / 3.6 qt
600 ACE™ : 2.1 L / 2.2 qt
Dry Weight - 600 EFI-85: 468 lb
600 ACE™: 488 lb
Power Train Drive clutch / Driven clutch - 600 EFI : pDrive™ / QRS
600 ACE™ : eDrive™ 2 / QRS
Drive Sprocket Pitch - 73 mm / 2.86 in.
Dimensions Vehicle Overall Length - 3,110 mm / 122.4 in.
Vehicle Overall Width - 994 mm / 39.1 in.
Vehicle Overall Height - 1,369 mm / 53.9 in.
Ski Stance - 813 mm / 32 in.
Track Length x Width x Profile - Cobra:
146 x 16 x 1.6 in.
Suspensions Suspension option - Standard
Front suspension - LTS
Front shock - Motion Control
Front suspension travel - 150 mm / 5.9 in.
Rear suspension - cMotion™
Center shock - Motion Control
Rear shock - KYB 36
Rear suspension travel - 245 mm / 9.6 in.
Feature Frame - REV® Gen4
Skis - Pilot™ DS 2
Seating - Trail narrow compact
Handlebar - Standard with J-hooks
Riser block height - 145 mm / 5.7 in.
Starter - Electric Starter
Reverse - 600 EFI : RER™
600 ACE™ : Mechanical
Air Radiator - Fan (600 ACE only)
Brake system - Brembo
Heated throttle lever grips - Standard
Gauge - 4.5-in. digital
Windshield - Medium
Runner / Carbide - Square 3/8 in. / 4 in.
Bumpers (Front / Rear) - Std / Heavy Duty
-
Download spec sheet
