Explore Grand Touring Packages & Specifications
-
Transportation and preparation not included.-
Trail
- 10.25 in. color touchscreen display with BRP Connect
- Premium Terra Green color
- Studded Silent Track II
- Adjustable Riser
- Pilot TX skis

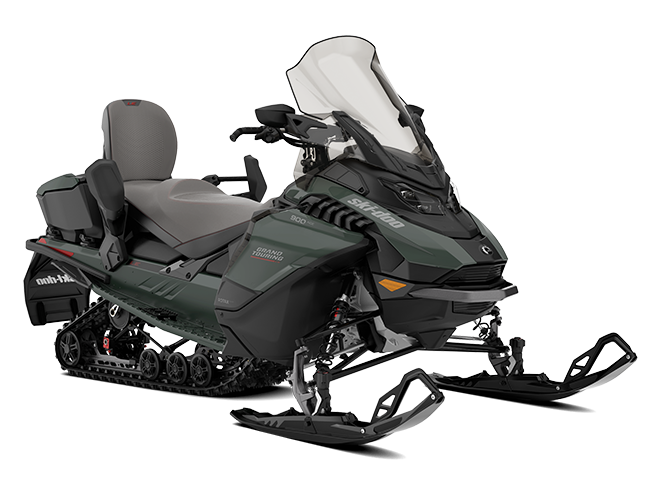

![terra-green]()
The ultimate 2-up trail experience. Incredible comfort, advanced technology and dynamic Rotax engine options provide riders with unforgettable winter moments to share.
-
Engine
Rotax® 900 ACE™, Rotax® 900 ACE™ Turbo, Rotax® 900 ACE™ Turbo R
-
Rear suspension
rMotion™ X with Air Control Supsension (ACS)
-
Front suspension
RAS™ X
-
Track
Silent Track II, Studded Silent Track II (Luxury Package only)
-
Special features
Pilot™ TX skis, Premium High-performance LED
Engine Engine - 900 ACE Turbo
900 ACE Turbo R
Engine details - 900 ACE™ : Liquid-cooled, four-stroke D.O.H.C., dry sump
900 ACE™ Turbo : Liquid-cooled, four-stroke D.O.H.C., dry sump, turbocharged
900 ACE™ Turbo R : Liquid-cooled, four-stroke D.O.H.C., dry sump, turbocharged
Engine Horsepower - 900 ACE™ : 95
900 ACE™ Turbo : 130
900 ACE™ Turbo R : 180
Cylinders & Displacement - 3 - 899 cc
Bore & stroke - 73 mm - 69.7 mm
Carburation - EFI
Fuel tank / Octane - 900 ACE™ : Regular unleaded - 87
900 ACE™ Turbo : Premium unleaded - 91
900 ACE™ Turbo R : Premium unleaded - 91
Fuel tank - 36 L / 9.5 US gal
Oil tank capacity (2-stroke) - 3.3 L / 3.5 qt
Dry Weight - 900 ACE™ : 581 lb
900 ACE™ Turbo : 607 lb
900 ACE™ Turbo R :611 lb
Power Train Drive clutch / Driven clutch - 900 ACE™ : pDrive™ / QRS
900 ACE™ Turbo : pDrive™ / QRS Vent
900 ACE™ Turbo R : pDrive™ / QRS Vent
Drive Sprocket Pitch - 36 mm / 1.43 in.
Dimensions Vehicle Overall Length - 3,127 mm / 123.1 in.
Vehicle Overall Width - 1,211 mm / 47.8 in. (adjustable)
Vehicle Overall Height - 1,513 mm / 59.6 in.
Ski Stance - 1,090 mm / 43 in. adjustable
Track Length x Width x Profile - Silent Track II:
137 x 15 x 1.25 in.
Studded Silent Track II:
137 x 15 x 1.25 in. (Luxury Package)
Suspensions Suspension option - Standard
Front suspension - RAS™ X
Front shock - KYB 36
Front suspension travel - 225 mm / 8.9 in.
Rear suspension - rMotion™ X
Center shock - KYB 36
Rear shock - ACS (Air Control Suspension)
Rear suspension travel - 276 mm / 10.9 in.
Feature Frame - REV® Gen5
Skis - Pilot™ TX
Seating - Trail wide 2-up heated
Handlebar - Standard
Riser block height - 120 mm / 4.7 in. (Adjustable)
Starter - Electric Starter
Reverse - Electro-mechanic
Brake system - Brembo
Heated throttle lever grips - Standard (driver and passenger)
Gauge - 7.2-in. digital
10.25-in. touchscreen (Luxury Package)
Windshield - Ultra-high with mirrors
Runner / Carbide - Round 1/2 / 4 in.
Bumpers (Front / Rear) - Std / Heavy Duty
-
-
2024Grand Touring LE
Transportation and preparation not included.-
Trail
- The ultimate in 2-up trail comfort and technology with dynamic engine options.
- REV Gen5 platform
- Premium Protection: Ultra-high windshield, side panel wind deflectors, rear snow deflector and running boards with small openings
![black]()
The ultimate 2-up trail experience. Incredible comfort, advanced technology and dynamic Rotax engine options provide riders with unforgettable winter moments to share.
-
Engine
Rotax® 900 ACE™, Rotax® 900 ACE™ Turbo, Rotax® 900 ACE™ Turbo R
-
Rear suspension
rMotion™ X with Air Control Supsension (ACS)
-
Front suspension
RAS™ X
-
Track
Silent Track II, Studded Silent Track II (Luxury Package only)
-
Special features
Pilot™ 5.7 SL or TX (Luxury Package) skis, High-performance LED
Engine Engine - Rotax® 900 ACE™
Rotax® 900 ACE™ Turbo
Rotax® 900 ACE™ Turbo R
Engine details - 900 ACE™ : Liquid-cooled, four-stroke D.O.H.C., dry sump
900 ACE™ Turbo : Liquid-cooled, four-stroke D.O.H.C., dry sump, turbocharged
900 ACE™ Turbo R : Liquid-cooled, four-stroke D.O.H.C., dry sump, turbocharged
Engine Horsepower - 900 ACE™ : 95
900 ACE™ Turbo : 130
900 ACE™ Turbo R : 180
Cylinders & Displacement - 3 - 899 cc
Bore & stroke - 73 mm - 69.7 mm
Carburation - EFI
Fuel tank / Octane - 900 ACE™ : Regular unleaded - 87
900 ACE™ Turbo : Premium unleaded - 91
900 ACE™ Turbo R : Premium unleaded - 91
Fuel tank - 36 L / 9.5 US gal
Oil tank capacity (2-stroke) - 3.3 L / 3.5 qt
Dry Weight - 900 ACE™ : 589 lb
900 ACE™ Turbo : 584 lb
900 ACE™ Turbo R : 558 lb
Power Train Drive clutch / Driven clutch - 900 ACE™ : pDrive™ / QRS
900 ACE™ Turbo : pDrive™ / QRS Vent
900 ACE™ Turbo R : pDrive™ / QRS Vent
Drive Sprocket Pitch - 36 mm / 1.43 in.
Dimensions Vehicle Overall Length - 3,127 mm / 123.1 in.
Vehicle Overall Width - 1,211 mm / 47.8 in. (adjustable)
Vehicle Overall Height - 1,513 mm / 59.6 in.
Ski Stance - 1,090 mm / 43 in. adjustable
Track Length x Width x Profile - Silent Track II:
137 x 15 x 1.25 in.
Studded Silent Track II:
137 x 15 x 1.25 in. (Luxury Package)
Suspensions Suspension option - Standard
Front suspension - RAS™ X
Front shock - KYB 36
Front suspension travel - 225 mm / 8.9 in.
Rear suspension - rMotion™ X
Center shock - KYB 36
Rear shock - ACS (Air Control Suspension)
Rear suspension travel - 276 mm / 10.9 in.
Feature Frame - REV® Gen5
Skis - Pilot™ 5.7 SL
Seating - Trail wide 2-up heated
Handlebar - Standard
Riser block height - 120 mm / 4.7 in.
Starter - Electric Starter
Reverse - Electro-mechanic
Brake system - Brembo
Heated throttle lever grips - Standard (driver and passenger)
Gauge - 7.2-in. digital
10.25-in. touchscreen (Luxury Package)
Windshield - Ultra-high with mirrors
Runner / Carbide - Round 1/2 / 4 in.
Bumpers (Front / Rear) - Std / Heavy Duty
-
-
2024Grand Touring Sport
Transportation and preparation not included.-
Trail
- Trail comfort and 2-up features with precision handling and savvy style.
- Two Rotax® engines available
- Ultra-high windshield with side deflectors
- 2-up seat with heated passenger handholds and air deflectors
![neo-yellow]()
Savvy style and handling meets 2-up trail comfort. Both pilot and passenger enjoy precision performance that inspires more excitement and new adventures on the snow.
-
Engine
Rotax® 600 ACE™, Rotax® 900 ACE™
-
Rear suspension
SC™-5M
-
Front suspension
RAS™ X
-
Track
Silent Track II
-
Special features
Pilot™ 5.7 SL skis
Engine Engine - Rotax® 600 ACE™
Rotax® 900 ACE™
Engine details - 600 ACE™ : Liquid-cooled, four-stroke D.O.H.C., dry sump
900 ACE™ : Liquid-cooled, four-stroke D.O.H.C., dry sump
Engine Horsepower - 600 ACE™ : 62
900 ACE™ : 95
Cylinders & Displacement - 600 ACE™ : 2 - 600 cc
900 ACE™ : 3 - 899 cc
Bore & stroke - 600 ACE™ : 73 mm – 69.7 mm
900 ACE™ : 73 mm – 69.7 mm
Carburation - EFI
Fuel tank / Octane - Regular unleaded - 87
Fuel tank - 36 L / 9.5 US gal
Oil tank capacity (2-stroke) - 600 ACE™ : 2.1 L / 2.2 qt
900 ACE™ : 3.3 L / 3.5 qt
Dry Weight - 600 ACE™ : 509 lb
900 ACE™ : 530 lb
Power Train Drive clutch / Driven clutch - 600 ACE™ : eDrive™ 2 / QRS
900 ACE™ : pDrive™ / QRS
Drive Sprocket Pitch - 36 mm / 1.43 in.
Dimensions Vehicle Overall Length - 3,127 mm / 123.1 in.
Vehicle Overall Width - 1,217 mm / 47.9 in.
Vehicle Overall Height - 1,513 mm / 59.6 in.
Ski Stance - 1,090 mm / 43 in. adjustable
Track Length x Width x Profile - Silent Track II :
137 x 15 x 1.25 in.
Suspensions Suspension option - Standard
Front suspension - RAS™ X
Front shock - Motion Control
Front suspension travel - 225 mm / 8.9 in.
Rear suspension - SC™-5M
Center shock - Motion Control
Rear shock - KYB 36
Rear suspension travel - 245 mm / 9.6 in.
Feature Frame - REV® Gen4
Skis - Pilot™ 5.7 SL
Seating - Trail wide 2-up
Handlebar - Standard
Riser block height - 120 mm / 4.7 in.
Starter - Electric Starter
Reverse - Mechanical
Brake system - Brembo
Heated throttle lever grips - Standard (driver and passenger)
Gauge - 4.5-in. digital
Windshield - Ultra-high with mirrors
Runner / Carbide - Round 1/2 / 4 in.
Bumpers (Front / Rear) - Std / Std
-
Download spec sheet
