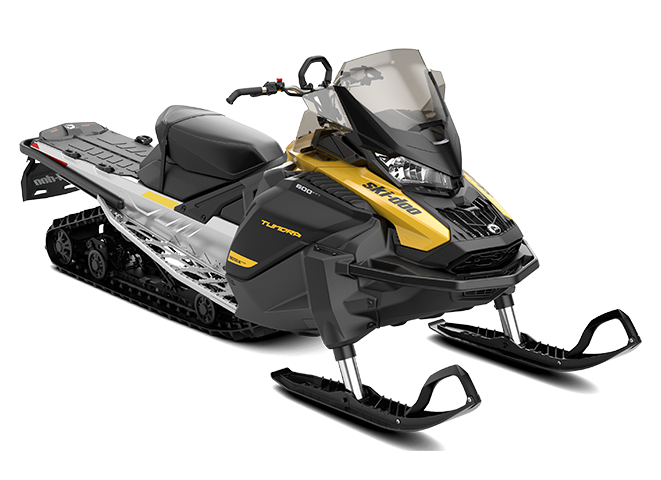

2022Tundra LT
-
Sport-Utility
- On & Off Trail
- Rotax® 600 EFI and 600 ACE™ engine with 650W magneto available
- HPG™ rear shock
- 4.5-in. digital display (600 ACE), Compact Digital Display (600 EFI)
- LTS telescopic front suspension
- SC™-5U articulating rear suspension with locking mechanism (no tool required)
![neo-yellow---black]()
Deep snow, harsh winter conditions - it doesn't matter to the Tundra LT. Now on the REV Gen4 platform, riders can take on anything with ultra-responsive handling, superior flotation and versatile features, all powered by reliable Rotax engines.
-
Engine
Rotax 600 EFI, Rotax 600 ACE
-
Rear suspension
SC-5U
-
Front suspension
LTS
-
Track
Charger : 154 x 16 x 1.5 in.
-
Special features
4.5-in. digital display (600 ACE), Compact Digital Display (600 EFI)
Engine Engine - Rotax® 600 EFI
Rotax® 600 ACE™
Engine details - 600 EFI : Liquid-cooled, two-stroke
600 ACE™ : Liquid-cooled, four-stroke D.O.H.C., dry sump
Engine Horsepower - 600 EFI : 85
600 ACE™ : 62
Cylinders & Displacement - 600 EFI : 2 – 599.4 cc
600 ACE™ : 2 – 600 cc
Bore & stroke - 600 EFI : 72.3 mm – 73 mm
600 ACE™ : 73 mm – 69.7 mm
Carburation - EFI
Fuel tank / Octane - Regular unleaded - 87
Fuel tank - 36 L / 9.5 US gal
Oil tank capacity (2-stroke) - 600 EFI : 3.4 L / 3.6 qt
600 ACE™ : 2.1 L / 2.2 qt
Dry Weight - 600 EFI : 223 kg / 491 lb
600 ACE™ : 234 kg / 515 lb
Power Train Drive clutch / Driven clutch - 600 EFI : pDrive™ with slider shoes QRS
600 ACE™ : eDrive™ 2 QRS
Drive Sprocket Pitch - 73 mm / 2.86 in.
Dimensions Vehicle Overall Length - 3,259 mm / 129.3 in.
Vehicle Overall Width - 994 mm / 39.1 in.
Vehicle Overall Height - 1,513 mm / 59.6 in.
Ski Stance - 813 mm / 32 in.
Track Length x Width x Profile - Charger:
154 x 16 x 1.5 in.
Suspensions Front suspension - LTS
Front shock - Motion Control
Front suspension travel - 150 mm / 5.9 in.
Rear suspension - SC™-5U
Center shock - Motion Control
Rear shock - HPG™
Rear suspension travel - 239 mm / 9.4 in.
Feature Frame - REV® Gen4
Bodywork - Wide design
Skis - Pilot™ DS 2
Seating - Short 2-up
Handlebar - U-shaped aluminum with J-hooks / Low grab handle
Riser block height - 145 mm / 5.7 in.
Starter - Electric Starter
Reverse - RER™ (600 EFI)
Mechanical (600 ACE™)
Brake system - Brembo brake with stainless-steel braided brake line
Heated throttle lever grips - Standard
Gauge - 4.5-in. digital display (600 ACE)
Compact Digital Display (600 EFI)
Windshield - 430 mm / 17 in.
Runner / Carbide - Square 3/8 in. / 4 in.
Bumpers (Front / Rear) - Std / Heavy Duty with tongue type hitch
-
-

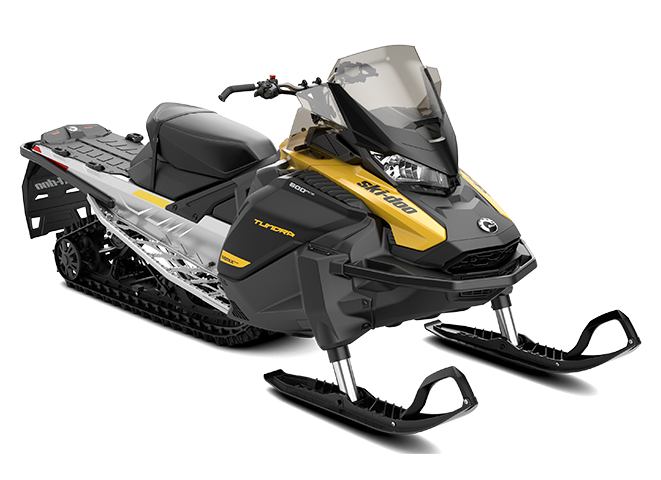

2022Tundra Sport
-
Sport-Utility
- On & Off Trail
- Rotax® 600 EFI and 600 ACE™ engine with 650W magneto available
- HPG™ rear shock
- 4.5-in. digital display (600 ACE), Compact Digital Display (600 EFI)
- LTS telescopic front suspension
- cMotion™ rear suspension
![neo-yellow---black]()
The Tundra Sport is packed with advanced, modern features at a value price like the responsive REV Gen4 platform, Rotax engines that offer class-leading efficiency and reliability and LinQ accessory options for convenient winter transportation.
-
Engine
Rotax 600 EFI, Rotax 600 ACE
-
Rear suspension
cMotion
-
Front suspension
LTS
-
Track
Cobra : 146 x 16 x 1.6 in.
-
Special features
4.5-in. digital display (600 ACE), Compact Digital Display (600 EFI)
Engine Engine - Rotax® 600 ACE™
Rotax® 600 EFI
Engine details - 600 EFI : Liquid-cooled, two-stroke
600 ACE™ : Liquid-cooled, four-stroke D.O.H.C., dry sump
Engine Horsepower - 600 EFI : 85
600 ACE™ : 62
Cylinders & Displacement - 600 EFI : 2 – 599.4 cc
600 ACE™ : 2 – 600 cc
Bore & stroke - 600 EFI : 72.3 mm - 73 mm
600 ACE™ : 73 mm – 69.7 mm
Carburation - EFI
Fuel tank / Octane - Regular unleaded - 87
Fuel tank - 36 L / 9.5 US gal
Oil tank capacity (2-stroke) - 600 EFI : 3.4 L / 3.6 qt
600 ACE™ : 2.1 L / 2.2 qt
Dry Weight - 600 EFI : 212 kg / 466 lb
600 ACE™ : 221 kg / 486 lb
Power Train Drive clutch / Driven clutch - 600 EFI : pDrive™ with slider shoes QRS
600 ACE™ : eDrive™ 2 QRS
Drive Sprocket Pitch - 73 mm / 2.86 in.
Dimensions Vehicle Overall Length - 3,110 mm / 122.4 in.
Vehicle Overall Width - 994 mm / 39.1 in.
Vehicle Overall Height - 1,369 mm / 53.9 in.
Ski Stance - 813 mm / 32 in.
Track Length x Width x Profile - Cobra:
146 x 16 x 1.6 in.
Suspensions Front suspension - LTS
Front shock - Motion Control
Front suspension travel - 150 mm / 5.9 in.
Rear suspension - cMotion™
Center shock - Motion Control
Rear shock - HPG™
Rear suspension travel - 245 mm / 9.6 in.
Feature Frame - REV® Gen4
Bodywork - Wide design
Skis - Pilot™ DS 2
Seating - Short 2-up
Handlebar - U-shaped aluminum with J-hooks
Riser block height - 145 mm / 5.7 in.
Starter - Electric Starter
Reverse - Mechanical (600 ACE™)
RER™ (600 EFI)
Brake system - Brembo brake with stainless-steel braided brake line
Heated throttle lever grips - Standard
Gauge - 4.5-in. digital display (600 ACE)
Compact Digital Display (600 EFI)
Windshield - 430 mm / 17 in.
Runner / Carbide - Square 3/8 in. / 4 in.
Bumpers (Front / Rear) - Std / Heavy Duty
-
