Explore Summit Packages & Specifications
-
Transportation and preparation not included.-
Deep Snow
- The ultimate deep-snow sled with features sharpened for technical terrain riding
- Rotax® 850 E-TEC® and 850 E-TEC® Turbo R engines available
- 10.25 in. color touchscreen display with BRP Connect
- tMotion™ XT rear suspension with rigid rear arm and adjustable limiter strap
- PowderMax X-Light 3 in. track with full-width rods
![timeless-black--painted-]()
![timeless-black--painted--and-orange-crush]()

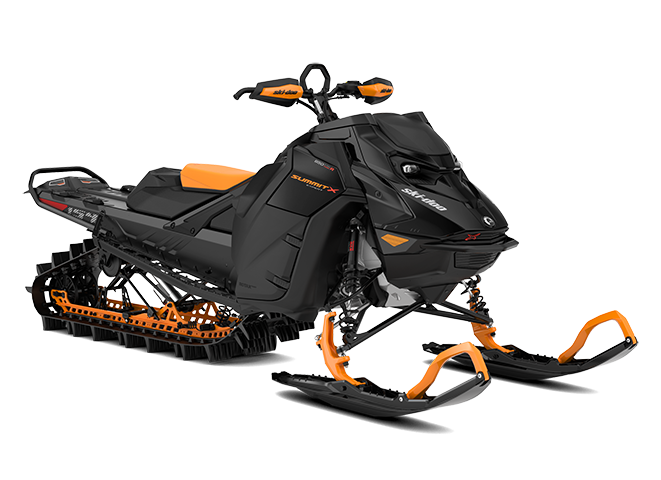

The 2024 Summit X with Expert Package reveals winter's full potential with the REV Gen5 platform, dynamic power of the 850 E-TEC Turbo R and rider-inspired features that push riders to elevate their game beyond what they ever thought possible.
-
Engine
Rotax® 850 E-TEC®, Rotax® 850 E-TEC® Turbo R
-
Rear suspension
tMotion™ XT with rigid rear arm
-
Front suspension
RAS™ 3 with 34 in. ski stance
-
Track
PowderMax† X-Light
-
Special features
E-TEC® SHOT™ starter standard, Adjustable brake lever, Pilot DS 4 skis, Short riser block, Premium LED headlights
Engine Engine - Rotax® 850 E-TEC
Rotax® 850 E-TEC Turbo R
Engine details - 850 E-TEC® : Liquid-cooled, two-stroke, eRAVE™
850 E-TEC® Turbo R : Liquid-cooled, two-stroke, turbocharged, eRAVE™
Engine Horsepower - 850 E-TEC® : 165
850 E-TEC® Turbo R : 180 up to 8,000 ft.
Cylinders & Displacement - 2 - 849 cc
Bore & stroke - 82 mm - 80.4 mm
Carburation - E-TEC® direct injection with additional booster injectors
Fuel tank / Octane - Premium unleaded - 91
Fuel tank - 36 L / 9.5 US gal
Oil tank capacity (2-stroke) - 3.4 L / 3.6 qt
Dry Weight - 850 E-TEC® : 430 lb (154 in.), 437 lb (165 in.)
850 E-TEC® Turbo R : 449 lb (154 in.), 456 lb (165 in.), 462 lb (175 in.)
Power Train Drive clutch / Driven clutch - pDrive™ with clickers / QRS Vent Plus
Drive Sprocket Pitch - 89 mm / 3.5 in.
Dimensions Vehicle Overall Length - 3,188 mm / 125.5 in. (154 in.)
3,299 mm / 129.9 in. (165 in.)
3,454 mm / 136 in. (175 in.)
Vehicle Overall Width - 1,024 / 40.3 (adjustable)
Vehicle Overall Height - 1,306 mm / 51.4 in.
Ski Stance - 864 mm / 34 in. adjustable
Track Length x Width x Profile - PowderMax† X-Light :
154 x 16 x 3.0 in.
165 x 16 x 3.0 in.
175 x 16 x 3.0 in. (850 E-TEC® Turbo only)
Suspensions Suspension option - Standard
Front suspension - RAS™ 3
Front shock - KYB 36 Plus with lightweight springs
Front suspension travel - 207 mm / 8.2 in.
Rear suspension - tMotion™ XT with Adjustable limiter strap
Center shock - KYB 36 Plus with lightweight spring
Rear shock - KYB† Pro 36 EA-3
Rear suspension travel - 258 mm. / 10.2 in.
Feature Frame - REV® Gen5
Skis - Pilot™ DS 4
Seating - Deep snow ultra compact
Handlebar - Tapered with J-hooks / Grab handle
Riser block height - 120 mm / 4.7 in.
Starter - E-TEC® SHOT Starter
Reverse - RER™
Brake system - Brembo with adjustable lever
Heated throttle lever grips - Standard
Gauge - 4.5 in. digital
10.25 in. touchscreen (opt.)
Windshield - Optional
Runner / Carbide - Square 3/8 in. / 4 in.
Bumpers (Front / Rear) - Std / Std
-
-
2024Summit X
Transportation and preparation not included.-
Deep Snow
- Longer climbs, tighter tree lines and deeper powder
- Rotax® 850 E-TEC® and 850 E-TEC® Turbo R engines available
- 10.25 in. color touchscreen display with BRP Connect
- Adjustable limiter strap and adjustable brake lever
- Short riser block (120 mm / 4.7 in.)
![arctic-desert]()
![timeless-black--painted-]()
Built on the REV Gen5 platform with 850 E-TEC Turbo R engine, Summit X broadens the possibilities with effortless deep-snow agility, instant power and a yearning to go further. It begs you to push the limits - and rewards you every time you do.
-
Engine
Rotax® 850 E-TEC®, Rotax® 850 E-TEC® Turbo R
-
Rear suspension
tMotion™ X
-
Front suspension
RAS™ 3 with 34 in. ski stance
-
Track
PowderMax† X-Light with FlexEdge™, PowderMax† Light with FlexEdge™
-
Special features
E-TEC® SHOT™ starter available, Pilot DS 3 skis, Premium LED headlights
Engine Engine - Rotax® 850 E-TEC
Rotax® 850 E-TEC Turbo R
Engine details - 850 E-TEC® : Liquid-cooled, two-stroke, eRAVE™
850 E-TEC® Turbo R : Liquid-cooled, two-stroke, turbocharged, eRAVE™
Engine Horsepower - 850 E-TEC® : 165
850 E-TEC® Turbo R : 180 up to 8,000 ft.
Cylinders & Displacement - 2 - 849 cc
Bore & stroke - 82 mm - 80.4 mm
Carburation - E-TEC® direct injection with additional booster injectors
Fuel tank / Octane - Premium unleaded - 91
Fuel tank - 36 L / 9.5 US gal
Oil tank capacity (2-stroke) - 3.4 L / 3.6 qt
Dry Weight - 850 E-TEC® : 429 lb (154 in.), 436 lb (165 in.)
850 E-TEC® Turbo R : 448 lb (154 in.), 454 lb (165 in.)
Power Train Drive clutch / Driven clutch - pDrive™ with clickers / QRS Vent Plus
Drive Sprocket Pitch - 89 mm / 3.5 in.
Dimensions Vehicle Overall Length - 3,188 mm / 125.5 in. (154 in.)
3,299 mm / 129.9 in. (165 in.)
Vehicle Overall Width - 1,024 mm / 40.3 in. (adjustable)
Vehicle Overall Height - 1,306 mm / 51.4 in.
Ski Stance - 864 mm / 34 in. adjustable
Track Length x Width x Profile - PowderMax† X-Light with FlexEdge™:
154 x 16 x 3.0 in.
165 x 16 x 3.0 in.
PowderMax† Light with FlexEdge™:
154 x 16 x 2.5 in.
165 x 16 x 2.5 in. (sea-level opt. only)
Suspensions Suspension option - Standard
Front suspension - RAS™ 3
Front shock - KYB 36 Plus with lightweight springs
Front suspension travel - 207 mm / 8.2 in.
Rear suspension - tMotion™ X with Adjustable limiter strap
Center shock - KYB 36 Plus with lightweight springs
Rear shock - KYB 36 Plus
Rear suspension travel - 258 mm. / 10.2 in.
Feature Frame - REV® Gen5
Skis - Pilot™ DS 3
Seating - Deep snow compact and lightweight
Handlebar - Tapered with J-hooks / Grab handle
Riser block height - 120 mm / 4.7 in.
Starter - E-TEC® SHOT Starter
Electric Starter (opt. select models)
Manual Starter (opt. select models)
Reverse - RER™
Brake system - Brembo
Heated throttle lever grips - Standard
Gauge - 4.5 in. digital
10.25 in. touchscreen (opt.)
Windshield - Optional
Runner / Carbide - Square 3/8 in. / 4 in.
Bumpers (Front / Rear) - Std / Std
-
-
Transportation and preparation not included.-
Deep Snow
- This high-end in-season package is loaded with proven technical features
- Rotax® 850 E-TEC® and 600R E-TEC® engines available
- 146 in. track length available
- Narrow 34 in. ski stance
- Premium LED Headlights
![arctic-desert]()
![timeless-black--painted-]()
When winter urges to push a little harder, explore a little deeper, the 2024 Summit Adrenaline with Edge Package is the answer. Built on the new REV Gen5 platform, it makes hillclimbs, treelines or open powder bowls more epic with its agile, effortless handling and addicting Rotax power.
-
Engine
Rotax® 850 E-TEC®, Rotax® 600R E-TEC®
-
Rear suspension
tMotion™ X
-
Front suspension
RAS™ 3 with lightweight ski spindle and revised ski stopper
-
Track
PowderMax† Light with FlexEdge™, PowderMax† X-Light with FlexEdge™
-
Special features
E-TEC® SHOT™ starter available, Pilot DS 3 skis
Engine Engine - Rotax® 850 E-TEC
Rotax® 600R E-TEC
Engine details - 850 E-TEC® : Liquid-cooled, two-stroke, eRAVE™
600R E-TEC® : Liquid-cooled, two-stroke, eRAVE™
Engine Horsepower - 850 E-TEC® : 165
600R E-TEC® : 125
Cylinders & Displacement - 850 E-TEC® : 2 - 849 cc
600R E-TEC® : 2 - 599.4 cc
Bore & stroke - 850 E-TEC® : 82 mm - 80.4 mm
600R E-TEC® : 72.3 mm - 73 mm
Carburation - E-TEC® direct injection with additional booster injectors
Fuel tank / Octane - Premium unleaded - 91
Fuel tank - 36 L / 9.5 US gal
Oil tank capacity (2-stroke) - 3.4 L / 3.6 qt
Dry Weight - 850 E-TEC® : 449 lb (146 in.), 445 lb (154 in.), 448 lb (165 in.)
600R E-TEC® : 434 lb (146 in.), 430 lb (154 in.)
Power Train Drive clutch / Driven clutch - pDrive™ with clickers / QRS Vent Plus
Drive Sprocket Pitch - 73 / 2.86 (146 in.)
89 / 3.5 (154 - 165 in.)"
Dimensions Vehicle Overall Length - 3,058 / 120.4 (146 in.)
3,188 / 125.5 (154 in.)
3,299 / 129.9 (165 in.)"
Vehicle Overall Width - 1,024 mm / 40.3 in. (adjustable)
Vehicle Overall Height - 1,395 mm / 54.9 in.
Ski Stance - 864 mm / 34 in. (adjustable)
Track Length x Width x Profile - PowderMax† II with FlexEdge™: 146 x 16 x 2.5 in.
PowderMax† Light with FlexEdge™: 154 x 16 x 2.5 in. 165 x 16 x 2.5 in. sea-level opt. only
PowderMax† X-Light with FlexEdge™: 154 X 16 X 3.0 in. 165 X 16 X 3.0 in.
Suspensions Suspension option - Standard
Front suspension - RAS™ 3
Front shock - KYB 36
Front suspension travel - 207 mm / 8.2 in.
Rear suspension - tMotion™ X
Center shock - KYB 36
Rear shock - KYB 36
Rear suspension travel - 258 mm / 10.2 in.
Feature Frame - REV® Gen5
Skis - Pilot™ DS 3
Seating - Deep snow compact and lightweight
Handlebar - Tapered with J-hooks / Grab handle
Riser block height - 165 mm / 6.5 in.
Starter - E-TEC® SHOT Starter
Reverse - RER™
Brake system - Brembo
Heated throttle lever grips - Standard
Gauge - 4.5 in. digital
Windshield - Optional
Runner / Carbide - Square 3/8 in. / 4 in.
Bumpers (Front / Rear) - Std / Std
-
-
2024Summit Adrenaline
Transportation and preparation not included.-
Deep Snow
- An excellent deep-snow machine for any rider
- Rotax® 850 E-TEC® and 600R E-TEC® engines available
- tMotion™ X rear suspension
- High quality HPG shock package
- LED headlights
![timeless-black--painted-]()
![catalyst-grey---neo-yellow]()
The 2024 Summit Adrenaline enables riders to redefine their own capabilities with the new REV Gen5 platform. Incredibly agile and effortless to ride with inspiring looks, the Adrenaline packs instant power delivery for conquering deep-snow terrain and expanding your winter horizons.
-
Engine
Rotax® 850 E-TEC®, Rotax® 600R E-TEC®
-
Rear suspension
tMotion™ X
-
Front suspension
RAS™ 3 with lightweight ski spindle and revised ski stopper
-
Track
PowderMax† II with FlexEdge™, PowderMax† Light with FlexEdge™
-
Special features
E-TEC® SHOT™ starter available, Pilot DS 3 skis, LED headlights
Engine Engine - Rotax® Rotax® 850 E-TEC
Rotax® Rotax® 600R E-TEC
Engine details - 850 E-TEC® : Liquid-cooled, two-stroke, eRAVE™
600R E-TEC® : Liquid-cooled, two-stroke, eRAVE™
Engine Horsepower - 850 E-TEC® : 165
600R E-TEC® : 125
Cylinders & Displacement - 850 E-TEC® : 2 - 849 cc
600R E-TEC® : 2 - 599.4 cc
Bore & stroke - 850 E-TEC® : 82 mm - 80.4 mm
600R E-TEC® : 72.3 mm - 73 mm
Carburation - E-TEC® direct injection with additional booster injectors
Fuel tank / Octane - Premium unleaded - 91
Fuel tank - 36 L / 9.5 US gal
Oil tank capacity (2-stroke) - 3.4 L / 3.6 qt
Dry Weight - 850 E-TEC® : 447 lb (146 in.), 443 lb (154 in.), 448 lb (165 in.)
600R E-TEC® : 432 lb (146 in.), 428 lb (154 in.)
Power Train Drive clutch / Driven clutch - pDrive™ with clickers / QRS Vent Plus
Drive Sprocket Pitch - 73 mm / 2.86 in. (146 in.)
89 mm / 3.5 in. (154 - 165 in.)
Dimensions Vehicle Overall Length - 3,208 mm / 122.4 in. (146 in.)
3,318 mm / 130.6 in. (154 in.)
Vehicle Overall Width - 1,073 / 42.2 in. (adjustable)
Vehicle Overall Height - 1,395 mm / 54.9 in.
Ski Stance - 930 mm / 36 in. adjustable
Track Length x Width x Profile - PowderMax† II with FlexEdge™:
146 x 16 x 2.5 in.
PowderMax† Light with FlexEdge™:
154 x 16 x 2.5 in.
Suspensions Suspension option - Standard
Front suspension - RAS™ 3
Front shock - KYB 36
Front suspension travel - 215 mm / 8.5 in.
Rear suspension - tMotion™ X
Center shock - KYB 36
Rear shock - KYB 36
Rear suspension travel - 258 mm / 10.2 in.
Feature Frame - REV® Gen5
Skis - Pilot™ DS 3
Seating - Deep snow
Handlebar - Tapered with J-hooks / Grab handle
Riser block height - 165 mm / 6.5 in.
Starter - Electric, SHOT (opt.), Manual (opt. select models)
Reverse - RER™
Brake system - Brembo
Heated throttle lever grips - Standard
Gauge - Compact Digital Display
Windshield - Optional
Runner / Carbide - Square 3/8 in. / 4 in.
Bumpers (Front / Rear) - Std / Std
-
Download spec sheet
You may also like
-
2025SUMMIT
Transportation and preparation not included.Effortlessly agile, Summit snowmobiles paired with industry-defining Rotax power deliver dynamic deep-snow performance and instant response in technical winter terrain.
-
2024FREERIDE
Transportation and preparation not included.Capable of conquering deep-snow extremes and doing it in a style all its own, the Freeride stands out alone in a world where insane climbs and big drops are the norm.
-
2024BACKCOUNTRY
Transportation and preparation not included.A true zero compromise 50/50 on-trail or off-trail snowmobile. The Backcountry delivers the agile performance and adrenaline these adventure-seeking riders love.
