2022MXZ X-RS
-
Trail
- Rotax® 850 E-TEC® and 600R E-TEC® engines
- Semi-active suspension with high-performance KYB PRO shock package available (850 E-TEC only)
- High-performance KYB Pro shock package
- Rack steering system
![/content/dam/global/en/ski-doo/my22/vehicle-line-up/trail/mxz/SKI-MY22-MXZ-X-RS-850-ETEC-HypSlv-LavRD-BK-34view.png]()
![hyper-silver---carbon-black]()
![black]()
The premiere on-trail snowmobile experience, the 2022 MXZ X-RS continues to raise the stakes in pure trail performance with the rMotion X rear suspension and RAS X front suspension creating the ultimate high-performance trail ride.

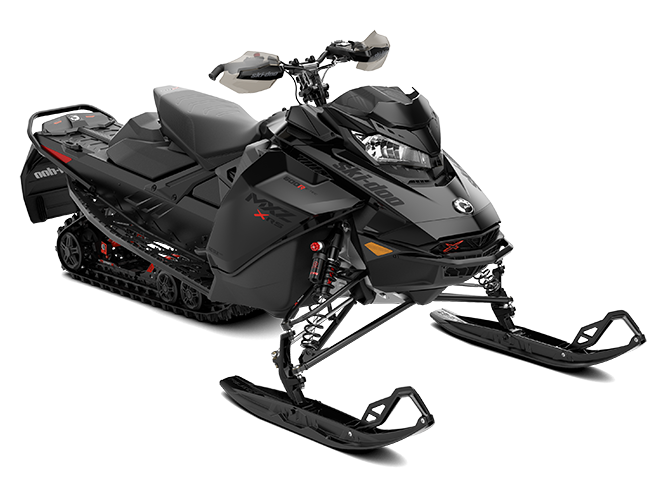

![/content/dam/global/en/ski-doo/my22/vehicle-line-up/trail/mxz/SKI-MY22-MXZ-X-RS-600R-ETEC-BK-BK-34view.png]()
![hyper-silver---carbon-black]()
![black]()
The premiere on-trail snowmobile experience, the 2022 MXZ X-RS continues to raise the stakes in pure trail performance with the rMotion X rear suspension and RAS X front suspension creating the ultimate high-performance trail ride.
-
Engine
Rotax 850 E-TEC, Rotax 600R E-TEC
-
Rear suspension
rMotion™ X
-
Front suspension
RAS™ X
-
Track
Ice Ripper XT : 129 x 15 x 1.5 in.
-
Special features
Pilot™ X Skis
Engine Engine - Rotax® 850 E-TEC
Rotax® 600R E-TEC
Engine details - Liquid-cooled, two-stoke, eRAVE™
Liquid-cooled, two-stroke, eRAVE™
Engine Horsepower - 165
125
Cylinders & Displacement - 2 - 849 cc
2 - 599.4 cc
Bore & stroke - 82 mm - 80.4 mm
72.3 mm - 73 mm
Carburation - E-TEC® direct injection with additional booster injectors
Fuel tank / Octane - Premium unleaded - 91
Fuel tank - 36 L
Oil tank capacity (2-stroke) - 3.4 L
Dry Weight - 490 lb
476 lb
Power Train Drive clutch / Driven clutch - pDrive™ with clickers / QRS Vent
Drive Sprocket Pitch - 73 mm / 2.86 in.
Dimensions Vehicle Overall Length - 2,925 mm / 115.2 in.
Vehicle Overall Width - 1,209 - 1,232 - 1,255 mm / 47.6 - 48.5 - 49.4 in.
Vehicle Overall Height - 1,267 mm / 49.9 in.
Ski Stance - 1,069 - 1,092 - 1,115 mm / 42.1 - 43 - 43.9 in.
Track Length x Width x Profile - Ice Ripper XT 1.5
Racing 1.75
Suspensions Front suspension - RAS™ X
Front shock - KYB† PRO 36 Easy-Adjust, KYB PRO Smart-Shox w/ opt. SAS
Front suspension travel - 265 mm / 10.4 in.
Rear suspension - rMotion™ X with QAS (optional)
Center shock - KYB† PRO 40 Easy-Adjust
Rear shock - KYB† PRO 40 Easy-Adjust, KYB PRO Smart-Shox w/ opt. SAS
Rear suspension travel - 292 mm / 11.5 in.
Feature Frame - REV® Gen4
Bodywork - Narrow design
Skis - Pilot™ X
Pilot™ TX (optional)
Seating - Trail performance
Handlebar - U-shaped aluminum with J-hooks / Transparent handguards
Riser block height - Adjustable-120 mm / 4.7 in.
Starter - Electric Starter
Manual Starter
Reverse - RER™
Brake system - Brembo racing brake with stainless-steel braided brake line
Heated throttle lever grips - Standard
Gauge - 7.2 in.-Wide Digital Display
Windshield - Optional
Runner / Carbide - Round 1/2 / 4 in.
Bumpers (Front / Rear) - Std / Std
-
-
2022MXZ Sport
-
Crossover
- On & Off Trail
- Rotax® 600 EFI engine
- 4.5-in. digital display
- RAS™ 3 front suspension & SC™-5M rear suspension
- Electric starter standard
- Low windshield (14 in.)
![/content/dam/global/en/ski-doo/my22/vehicle-line-up/trail/mxz/SKI-MY22-MXZ-Sport-600-EFI-CatGrey-BK-34view.png]()
![catalyst-grey---black]()
The responsive handling and smile-generating power of the 2022 MXZ Sport deliver epic winter moments all season long, and does it at a budget-friendly price.
-
Engine
Rotax 600 EFI
-
Rear suspension
SC™-5M
-
Front suspension
RAS™ 3
-
Track
RipSaw† : 129 x 15 x 1.25 in.
-
Special features
4.5-in. Digital Display, Pilot™ 5.7 Skis
Engine Engine - Rotax® 600 EFI
Engine details - Liquid-cooled, two-stroke
Engine Horsepower - 85
Cylinders & Displacement - 2 - 599.4 cc
Bore & stroke - 72.3 mm - 73 mm
Carburation - EFI
Fuel tank / Octane - Regular unleaded - 87
Fuel tank - 36 L
Oil tank capacity (2-stroke) - 3.4 L
Dry Weight - 437 lb
Power Train Drive clutch / Driven clutch - pDrive™ with slider shoes / QRS
Drive Sprocket Pitch - 73 mm / 2.86 in.
Dimensions Vehicle Overall Length - 2,925 mm / 115.2 in.
Vehicle Overall Width - 1,217 mm / 47.9 in.
Vehicle Overall Height - 1,267 mm / 49.9 in.
Ski Stance - 1,077 mm / 42.4 in.
Track Length x Width x Profile - RipSaw 1.25
Suspensions Front suspension - RAS™ 3
Front shock - Motion Control
Front suspension travel - 220 mm / 8.7 in.
Rear suspension - SC™-5M
Center shock - Motion Control
Rear shock - Motion Control
Rear suspension travel - 245 mm / 9.6 in.
Feature Frame - REV® Gen4
Bodywork - Narrow design
Skis - Pilot™ 5.7
Seating - Trail compact
Handlebar - U-shaped aluminum with J-hooks
Riser block height - 120 mm / 4.7 in.
Starter - Electric Starter
Reverse - RER™
Brake system - Brembo brake with stainless-steel braided brake line
Heated throttle lever grips - Standard
Gauge - 4.5 in. Digital Display
Windshield - 360 mm / 14 in.
Runner / Carbide - Square 3/8 in. / 4 in.
Bumpers (Front / Rear) - Std / Std
-
