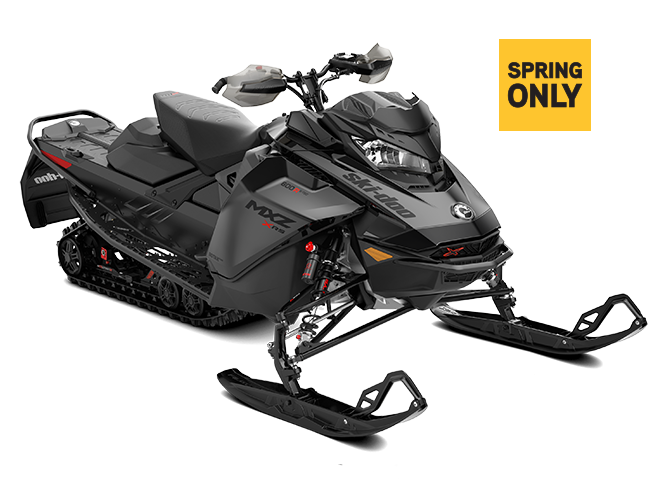

2023MXZ X-RS
Transportation and preparation not included.Commodity surcharge of $520 will apply.-
Trail
- Rotax® 600R E-TEC® and 850 E-TEC® engines
- 10.25" color touchscreen display with BRP Connect available (850 E-TEC® only)
- Smart-Shox semi-active suspension available with Pilot™ X or Pilot™ TX skis
- KYB† Pro 40R front shocks
![platinum-silver---spartan-red]()
![black]()
The premiere on-trail snowmobile experience, the 2023 MXZ X-RS continues to raise the stakes in pure trail performance with the all-new REV Gen5 platform delivering enhanced performance and control everywhere you touch the snow.
Starting at $16,899
with Transport and Preparation
Transportation and preparation not included.Commodity surcharge of $520 will apply.-
Engine
Rotax® 600R E-TEC®, Rotax® 850 E-TEC®
-
Rear suspension
rMotion™ X
-
Front suspension
RAS™ X
-
Track
Ripsaw†, Ice Ripper XT
-
Special features
10.25" color touchscreen display with BRP Connect available (850 E-TEC® only), Pilot™ X & Pilot™ TX (optional) Skis
Engine Engine - Rotax® 600R E-TEC
Rotax® 850 E-TEC
Engine details - 600R E-TEC® : Liquid-cooled, two-stroke, eRAVE™
850 E-TEC® : Liquid-cooled, two-stoke, eRAVE™
Engine Horsepower - 600R E-TEC® : 125
850 E-TEC® : 165
Cylinders & Displacement - 600R E-TEC® : 2 - 599.4 cc
850 E-TEC® : 2 - 849 cc
Bore & stroke - 600R E-TEC® : 72.3 mm - 73 mm
850 E-TEC® : 82 mm – 80.4 mm
Carburation - 600R E-TEC® : E-TEC® direct injection
850 E-TEC® : E-TEC® direct injection with additional booster injectors
Fuel tank / Octane - Premium unleaded - 91
Fuel tank - 36 L / 9.5 US gal
Oil tank capacity (2-stroke) - 3.4 L / 3.6 qt
Dry Weight - 600R E-TEC® : 479 lb
850 E-TEC® : 493 lb
Power Train Drive clutch / Driven clutch - 600R E-TEC® : pDrive™ with clickers / QRS
850 E-TEC® : pDrive™ with clickers / QRS Vent
Drive Sprocket Pitch - 73 mm / 2.86 in.
Dimensions Vehicle Overall Length - 2,925 mm / 115.2 in.
Vehicle Overall Width - 1,209 - 1,232 - 1,255 mm / 47.6 - 48.5 - 49.4 in.
Vehicle Overall Height - 1,267 mm / 49.9 in.
Ski Stance - 1,090 mm / 43 in. adjustable
Track Length x Width x Profile - Ripsaw†:
129 x 15 x 1.5 in.
Ice Ripper XT:
129 x 15 x 1.5 in.
Suspensions Suspension option - Standard
Smart-Shox and Pilot TX
Front suspension - RAS™ X
Front shock - KYB† Pro 40R EA-3
KYB† Pro Smart-Shox opt. (Option already sold out for the 2022-2023 season)
Front suspension travel - 265 mm / 10.4 in.
Rear suspension - rMotion™ X
Center shock - KYB† Pro 40 EA-3
Rear shock - KYB† Pro 40 EA-3
KYB† Pro Smart-Shox opt. (Option already sold out for the 2022-2023 season)
Rear suspension travel - 292 mm / 11.5 in.
Feature Frame - 600R E-TEC® : REV® Gen4
850 E-TEC® : REV® Gen5
Skis - Pilot™ X
Pilot™ TX (opt. w/ Smart-Shox)
Seating - Trail performance
Handlebar - U-shaped aluminum with J-hooks / Transparent handguards
Riser block height - 90 mm / 3.5 in.
Starter - Electric Starter
Reverse - RER™
Brake system - Brembo
Heated throttle lever grips - Standard
Gauge - Compact Digital Display
7.2 in.-Wide Digital Display
10.25 in. Color Touchscreen Display with BRP connect (Option already sold out for the 2022-2023 season)
Windshield - Optional
Runner / Carbide - Round 1/2 / 4 in.
Bumpers (Front / Rear) - Std / Std
-
-
2023MXZ Blizzard
Transportation and preparation not included.Commodity surcharge of $520 will apply.-
Trail
- Rotax® 600R E-TEC® and 850 E-TEC® engines
- KYB† Pro 36 EA-3 front and rear shocks
- Rack steering system
- 7.2 in. digital display
![black]()
![neo-yellow]()
The legendary MXZ Blizzard returns. Freshly minted in the REV Gen5 platform, it's features combine amazing response, inspiring power and exceptional handling in any conditions to provide riders with the ultimate in-season sled to conquer any trail terrain.
Starting at $16,149
with Transport and Preparation
Transportation and preparation not included.Commodity surcharge of $520 will apply.-
Engine
Rotax® 600R E-TEC®, Rotax® 850 E-TEC®
-
Rear suspension
rMotion™ X
-
Front suspension
RAS™ X
-
Track
Ripsaw†, Ice Ripper XT
-
Special features
7.2 in. digital display, Pilot™ X Skis
Engine Engine - Rotax® 600R E-TEC
Rotax® 850 E-TEC
Engine details - 600R E-TEC® : Liquid-cooled, two-stroke, eRAVE™
850 E-TEC® : Liquid-cooled, two-stoke, eRAVE™
Engine Horsepower - 600R E-TEC® : 125
850 E-TEC® : 165
Cylinders & Displacement - 600R E-TEC® : 2 – 599.4 cc
850 E-TEC® : 2 - 849 cc
Bore & stroke - 600R E-TEC® : 72.3 mm - 73 mm
850 E-TEC® : 82 mm – 80.4 mm
Carburation - 600R E-TEC® : E-TEC® direct injection
850 E-TEC® : E-TEC® direct injection with additional booster injectors
Fuel tank / Octane - Premium unleaded - 91
Fuel tank - 36 L / 9.5 US gal
Oil tank capacity (2-stroke) - 3.4 L / 3.6 qt
Dry Weight - 600R E-TEC® : 466 lb
850 E-TEC® : 480 lb
Power Train Drive clutch / Driven clutch - 600R E-TEC® : pDrive™ with clickers / QRS
850 E-TEC® : pDrive™ with clickers / QRS Vent
Drive Sprocket Pitch - 73 mm / 2.86 in.
Dimensions Vehicle Overall Length - 2,925 mm / 115.2 in.
Vehicle Overall Width - 1,209 - 1,232 - 1,255 mm / 47.6 - 48.5 - 49.4 in.
Vehicle Overall Height - 1,267 mm / 49.9 in.
Ski Stance - 1,090 mm / 43 in. adjustable
Track Length x Width x Profile - Ripsaw†:
129 x 15 x 1.25 in.
Ice Ripper XT:
129 x 15 x 1.25 in.
Suspensions Suspension option - Standard
Front suspension - RAS™ X
Front shock - KYB† Pro 36 EA-3
Front suspension travel - 265 mm / 10.4 in.
Rear suspension - rMotion™ X
Center shock - HPG™ Plus
Rear shock - KYB† Pro 36 EA-3
Rear suspension travel - 292 mm / 11.5 in.
Feature Frame - 600R E-TEC® : REV® Gen4
850 E-TEC® : REV® Gen5
Skis - Pilot™ X
Seating - Trail performance
Handlebar - U-shaped aluminum with J-hooks / Transparent handguards
Riser block height - 90 mm / 3.5 in.
Starter - Electric Starter
Reverse - RER™
Brake system - Brembo
Heated throttle lever grips - Standard
Gauge - 7.2 in.-Wide Digital Display
Windshield - 360 mm / 14 in.
Runner / Carbide - Round 7/16 / 4 in.
Bumpers (Front / Rear) - Std / Std
-
-
2023MXZ Sport
Transportation and preparation not included.Commodity surcharge of $520 will apply.-
Trail
- Rotax® 600 EFI engine
- Electric starter standard
- Low windshield (14 in.)
![neo-yellow---black]()
The responsive handling and smile-generating power of the 2023 MXZ Sport deliver epic winter moments all season long, and does it at a budget-friendly price.
Starting at $10,499
with Transport and Preparation
Transportation and preparation not included.Commodity surcharge of $520 will apply.-
Engine
Rotax® 600 EFI
-
Rear suspension
SC™-5M
-
Front suspension
RAS™ X
-
Track
Ripsaw†
-
Special features
Compact Digital Display, Pilot™ 5.7 Skis
Engine Engine - Rotax® 600 EFI
Engine details - Liquid-cooled, two-stroke
Engine Horsepower - 85
Cylinders & Displacement - 2 - 599.4 cc
Bore & stroke - 72.3 mm - 73 mm
Carburation - EFI
Fuel tank / Octane - Regular unleaded - 87
Fuel tank - 36 L / 9.5 US gal
Oil tank capacity (2-stroke) - 3.4 L / 3.6 qt
Dry Weight - 435 lb
Power Train Drive clutch / Driven clutch - pDrive™ / QRS
Drive Sprocket Pitch - 73 mm / 2.86 in.
Dimensions Vehicle Overall Length - 2,925 mm / 115.2 in.
Vehicle Overall Width - 1,217 mm / 47.9 in.
Vehicle Overall Height - 1,267 mm / 49.9 in.
Ski Stance - 1,090 mm / 43 in. adjustable
Track Length x Width x Profile - Ripsaw†:
129 x 15 x 1.25 in.
Suspensions Suspension option - Standard
Front suspension - RAS™ X
Front shock - Motion Control
Front suspension travel - 235 mm / 9.3 in.
Rear suspension - SC™-5M
Center shock - Motion Control
Rear shock - Motion Control
Rear suspension travel - 245 mm / 9.6 in.
Feature Frame - REV® Gen4
Skis - Pilot™ 5.7
Seating - Trail compact
Handlebar - U-shaped aluminum with J-hooks
Riser block height - 120 mm / 4.7 in.
Starter - Electric Starter
Reverse - RER™
Brake system - Brembo
Heated throttle lever grips - Standard
Gauge - Compact Digital Display
Windshield - 360 mm / 14 in.
Runner / Carbide - Square 3/8 in. / 4 in.
Bumpers (Front / Rear) - Std / Std
-
Download spec sheet
