- Compact Ergonomics
- Platform
- Front Suspension
- NEO+ Package
- Rotax Engines
Explore Packages & Specifications
-
2024MXZ NEO
Transportation and preparation not included.-
Trail
- Rotax® 600 EFI - 40 engine
- 120 x 14 x 1.0 Cobra Track
- RER™ electronic reverse
![neo-yellow---catalyst-grey]()
Designed to give more riders more opportunity to discover a love for the trails, MXZ Neo delivers right-sized ergonomics and power for beginning riders or riders of smaller stature – but with a full-size fun factor and first-class riding experience.
-
Engine
Rotax® 600 EFI - 40
-
Rear suspension
Neo
-
Front suspension
RAS™ X
-
Track
Cobra
-
Special features
4.5 in. Digital Display, Pilot™ 5.7 Skis
Engine Engine - Rotax® 600 EFI - 40
Engine details - Liquid-cooled, two-stroke
Engine Horsepower - 40
Cylinders & Displacement - 2 - 599.4 cc
Bore & stroke - 72.3 mm - 73 mm
Carburation - EFI
Fuel tank / Octane - Regular unleaded - 87
Fuel tank - 36 L / 9.5 US gal
Oil tank capacity (2-stroke) - 3.4 L / 3.6 qt
Dry Weight - 403 lb
Power Train Drive clutch / Driven clutch - pDrive™ / QRS Lite
Drive Sprocket Pitch - 73 mm / 2.86 in.
Dimensions Vehicle Overall Length - 2,880 mm / 113.4 in.
Vehicle Overall Width - 1,157 - 1,202 mm / 45,6 - 47.3 in
Vehicle Overall Height - 1,060 mm / 41.7 in
Ski Stance - 1,000 mm / 39 in. adjustable
Track Length x Width x Profile - Cobra:
120 x 14 x 1.0 in.
Suspensions Suspension option - Standard
Front suspension - RAS™ X
Front shock - Motion Control
Front suspension travel - 175 mm / 6.9 in.
Rear suspension - Neo
Center shock - Torsion spring
Rear shock - Motion Control
Rear suspension travel - 212 mm / 8.3 in.
Feature Frame - REV® Gen4
Skis - Pilot™ 5.7
Seating - Trail narrow ultra-compact
Handlebar - Narrow standard with J-hooks
Riser block height - 120 mm / 4.7 in
Starter - Electric Starter
Reverse - RER™
Brake system - Brembo
Heated throttle lever grips - Standard
Gauge - 4.5-in. digital
Windshield - Optional
Runner / Carbide - Square 3/8 in. / 4 in.
Bumpers (Front / Rear) - Std / Std
-
-

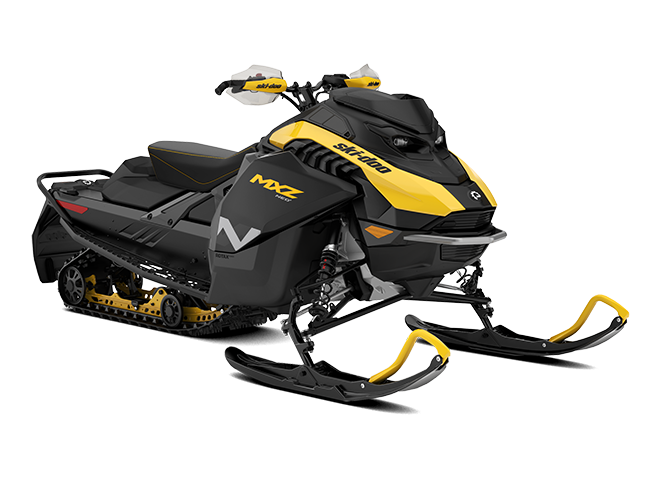

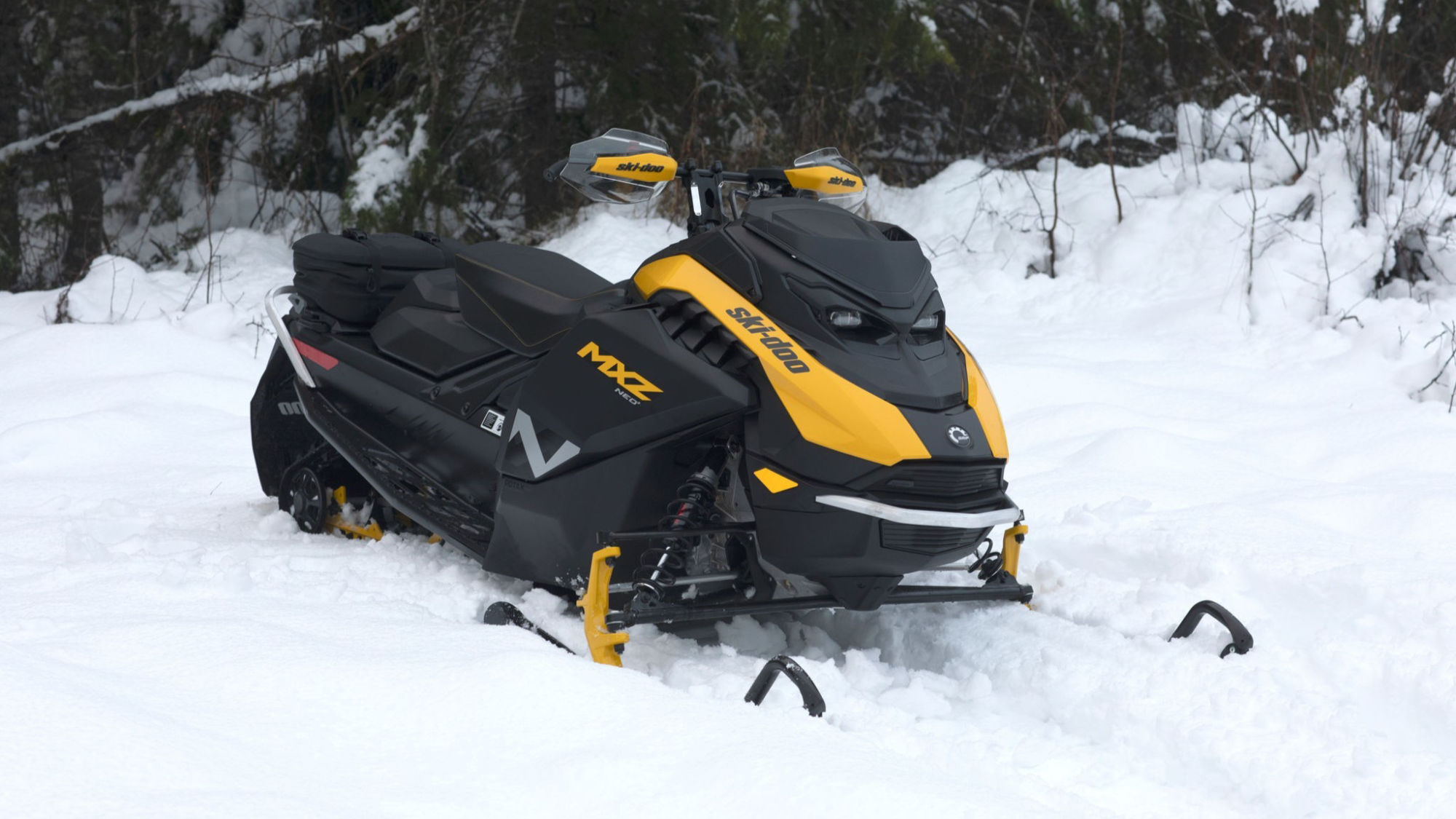

2024MXZ NEO+
Transportation and preparation not included.-
Trail
- Rotax® 600 EFI - 55 engine
- 120 x 15 x 1.25 Ripsaw† Track
- KYB 36 ™ Front Shocks
- Steering cover
- Premium look
![black]()
MXZ Neo+ uses the same philosophy as the Neo, with properly sized ergonomics, but adds 15 more horsepower, more aggressive track and a few more creature comforts riders of any skill set will appreciate - especially as their confidence and abilities grow.
-
Engine
Rotax® 600 EFI - 55
-
Rear suspension
Neo
-
Front suspension
RAS™ X
-
Track
Ripsaw†
-
Special features
4.5 in. Digital Display, Pilot™ 5.7 Skis
Engine Engine - Rotax® 600 EFI - 55
Engine details - Liquid-cooled, two-stroke
Engine Horsepower - 55
Cylinders & Displacement - 2 - 599.4 cc
Bore & stroke - 72.3 mm - 73 mm
Carburation - EFI
Fuel tank / Octane - Regular unleaded - 87
Fuel tank - 36 L / 9.5 US gal
Oil tank capacity (2-stroke) - 3.4 L / 3.6 qt
Dry Weight - 425 lb
Power Train Drive clutch / Driven clutch - pDrive™ / QRS Lite
Drive Sprocket Pitch - 73 mm / 2.86 in.
Dimensions Vehicle Overall Length - 2,880 mm / 113.4 in.
Vehicle Overall Width - 1,157 - 1,202 mm / 45,6 - 47.3 in
Vehicle Overall Height - 1,060 mm / 41.7 in
Ski Stance - 1,000 mm / 39 in. adjustable
Track Length x Width x Profile - Ripsaw†:
120 x 15 x 1.25 in.
Suspensions Suspension option - Standard
Front suspension - RAS™ X
Front shock - KYB 36
Front suspension travel - 175 mm / 6.9 in.
Rear suspension - Neo
Center shock - Torsion spring
Rear shock - Motion Control
Rear suspension travel - 212 mm / 8.3 in.
Feature Frame - REV® Gen4
Skis - Pilot™ 5.7
Seating - Trail narrow ultra-compact
Handlebar - Narrow standard with J-hooks
Riser block height - 120 mm / 4.7 in
Starter - Electric Starter
Reverse - RER™
Brake system - Brembo
Heated throttle lever grips - Standard
Gauge - 4.5-in. digital
Windshield - Optional
Runner / Carbide - Square 3/8 in. / 4 in.
Bumpers (Front / Rear) - Std / Std
-
Download spec sheet
