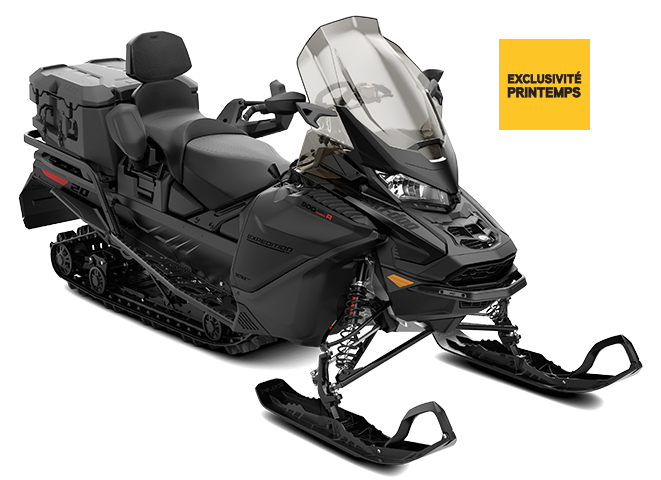

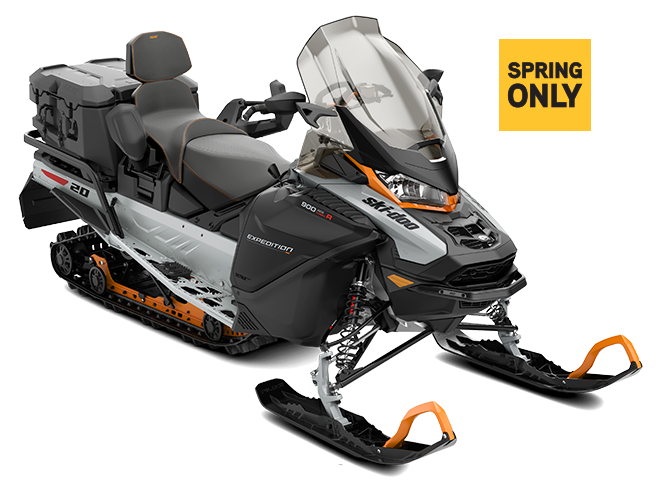

2023Expedition SE
-
Crossover
- On & Off trail
- Rotax® 900 ACE™ Turbo R engine
- Air Control Suspension (ACS) rear shock
- 7.8-in. wide LCD display with BRP Connect available
- RAS™ 3 suspension
- SC™-5U suspension
![catalyst-grey---orange-crush]()
![black]()
The 2023 Expedition SE is where luxurious comfort and rugged capability meet with perfect chemistry. Based on the REV Gen4 platform, full of cozy features paired with work-oriented components to offer a remarkably capable sled both on- and off-trail.
-
Engine
Rotax® 900 ACE™ Turbo R
-
Rear suspension
SC™-5U with ACS
-
Front suspension
RAS™ X
-
Track
Silent Cobra WT, Silent Ice Cobra WT
-
Special features
7.8-in. wide LCD color display, Pilot™ 7.4 Skis
Engine Engine - Rotax® 900 ACE™ Turbo R
Engine details - Liquid-cooled, four-stroke D.O.H.C., dry sump, turbocharged
Engine Horsepower - 180
Cylinders & Displacement - 3 - 899 cc
Bore & stroke - 73 mm – 69.7 mm
Carburation - EFI
Fuel tank - 42 L
Oil tank capacity (2-stroke) - 3.3 L
Dry Weight - 694 lb
Power Train Drive clutch / Driven clutch - pDrive™ / QRS Vent
Drive Sprocket Pitch - 73 mm / 2.86 in.
Dimensions Vehicle Overall Length - 3,256 mm / 128.2 in.
Vehicle Overall Width - 1,200 to 1,240 mm / 47.7 to 48.8 in.
Vehicle Overall Height - 1,513 mm / 59.6 in.
Ski Stance - 1,000 mm / 39 in. adjustable
Track Length x Width x Profile - Silent Ice Cobra WT:
154 x 20 x 1.5 in. opt.
Silent Cobra WT:
154 x 20 x 1.8 in. opt.
Suspensions Front suspension - RAS™ X
Front shock - HPG™
Front suspension travel - 220 mm / 8.7 in.
Rear suspension - SC™-5U
Center shock - HPG™
Rear shock - ACS (Air Control Suspension)
Rear suspension travel - 239 mm / 9.4 in.
Feature Frame - REV® Gen4
Skis - Pilot™ 7.4
Seating - 2-up modular with underseat storage
Handlebar - Standard with J-hooks / Grab handle
Riser block height - Adjustable-120 mm / 4.7 in.
Starter - Electric Starter
Reverse - Electro-mechanic
Brake system - Brembo
Heated throttle lever grips - Standard (driver and passenger)
Gauge - 7.2 in.-Wide Digital Display
Large panoramic 7.8" wide LCD color display
Windshield - 585 mm / 23 in. with mirrors
Runner / Carbide - Square 3/8 in. / 4 in.
Bumpers (Front / Rear) - Heavy Duty / Hitch receiver
-
-

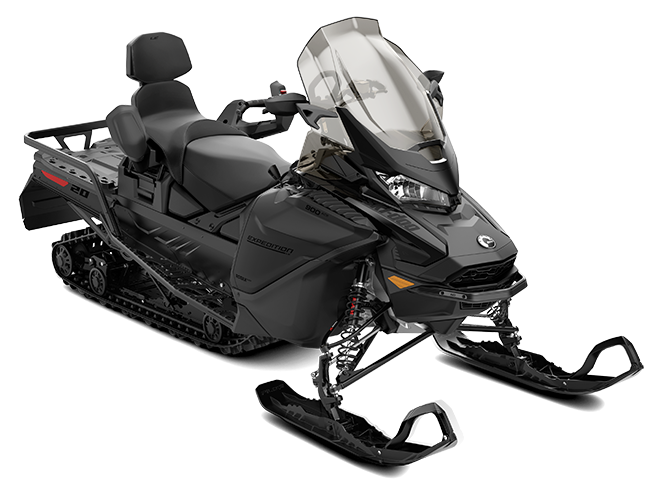

2023Expedition LE
-
Crossover
- On & Off trail
- Three Rotax® engines available: 900 ACE™, 900 ACE™ Turbo and 900 ACE™ Turbo R engines
- Available with 20 in. or 24 in. track options
- 20-in. wide Multi-LinQ plate with 125 lb / 56.7 kg cargo capacity
![arctic-desert---black]()
![black]()
Offering every advantage for riders to enjoy off-trail exploration, premium touring and a get-your-boots-dirty work ethic, the REV Gen4 based Expedition LE is as versatile a sled as there is on the market.
-
Engine
Rotax® 900 ACE™, Rotax® 900 ACE™ Turbo, Rotax® 900 ACE™ Turbo R
-
Rear suspension
SC™-5U
-
Front suspension
RAS™ X
-
Track
Silent Cobra WT, Silent Cobra SWT
-
Special features
4.5-in. digital display, Pilot™ 7.4 skis
Engine Engine - Rotax® 900 ACE™
Rotax® 900 ACE™ Turbo
Rotax® 900 ACE™ Turbo R
Engine details - 900 ACE™ : Liquid-cooled, four-stroke D.O.H.C., dry sump
900 ACE™ Turbo : Liquid-cooled, four-stroke D.O.H.C., dry sump, turbocharged
900 ACE™ Turbo R : Liquid-cooled, four-stroke D.O.H.C., dry sump, turbocharged
Engine Horsepower - 900 ACE™ : 95
900 ACE™ Turbo : 130
900 ACE™ Turbo R : 180
Cylinders & Displacement - 900 ACE™ : 3 - 899 cc
900 ACE™ Turbo : 3 - 899 cc
900 ACE™ Turbo R : 3 - 899 cc
Bore & stroke - 900 ACE™ : 73 mm – 69.7 mm
900 ACE™ Turbo : 73 mm – 69.7 mm
900 ACE™ Turbo R : 73 mm – 69.7 mm
Carburation - 900 ACE™ : EFI
900 ACE™ Turbo : EFI
900 ACE™ Turbo R : EFI
Fuel tank - 42 L
Oil tank capacity (2-stroke) - 900 ACE™ : 3.3 L
900 ACE™ Turbo : 3.3 L
900 ACE™ Turbo R : 3.3 L
Dry Weight - 900 ACE™ : 640 lb (20 in.), 650 lb (24 in.)
900 ACE™ Turbo : 666 lb (20 in.), 676 lb (24 in.)
900 ACE™ Turbo R : 670 lb (20 in.), 681 lb (24 in.)
Power Train Drive clutch / Driven clutch - 900 ACE™ : pDrive™ / QRS
900 ACE™ Turbo : pDrive™ / QRS Vent
900 ACE™ Turbo R : pDrive™ / QRS Vent
Drive Sprocket Pitch - 73 mm / 2.86 in.
Dimensions Vehicle Overall Length - 3,256 mm / 128.2 in.
Vehicle Overall Width - 1,200 to 1,240 mm / 47.7 to 48.8 in.
Vehicle Overall Height - 1,513 mm / 59.6 in.
Ski Stance - 1,000 mm / 39 in. adjustable
Track Length x Width x Profile - Silent Cobra WT:
154 x 20 x 1.5 in.
Suspensions Front suspension - RAS™ X
Front shock - HPG™
Front suspension travel - 220 mm / 8.7 in.
Rear suspension - SC™-5U
Center shock - HPG™
Rear shock - HPG™
Rear suspension travel - 239 mm / 9.4 in.
Feature Frame - REV® Gen4
Skis - Pilot™ 7.4
Seating - 2-up modular with underseat storage
Handlebar - Standard with J-hooks / Grab handle
Riser block height - 145 mm / 5.7 in.
Starter - Electric Starter
Reverse - 900 ACE™ : Electro-mechanic
900 ACE™ Turbo : Electro-mechanic
900 ACE™ Turbo R : Electro-mechanic
Brake system - Brembo
Heated throttle lever grips - Standard (driver and passenger)
Gauge - Compact digital display
Windshield - 585 mm / 23 in. with mirrors
Runner / Carbide - Square 3/8 in. / 4 in.
Bumpers (Front / Rear) - Heavy Duty / Hitch receiver
-
-
2023Expedition Xtreme
-
Crossover
- On & Off trail
- Two Rotax® engines available: 850 E-TEC® and 900 ACE™ Turbo R
- KYB† Pro 36 easy-adjust rear shock
- HPG™ Plus front shocks
![black---spartan-red]()
Ready to wander as soon as it’s finished the job, the Expedition Xtreme delivers rugged off-trail ability with premium trail handling to provide riders exceptional capability and performance no matter where they roam.
-
Engine
Rotax® 850 E-TEC®, Rotax® 900 ACE™ Turbo R
-
Rear suspension
SC™-5U
-
Front suspension
RAS™ X
-
Track
Cobra WT
-
Special features
4.5-in. digital display, Pilot™ DS 3 Skis
Engine Engine - Rotax® 850 E-TEC
Rotax® 900 ACE™ Turbo R
Engine details - 850 E-TEC® : Liquid-cooled, two-stoke, eRAVE™
900 ACE™ Turbo R : Liquid-cooled, four-stroke D.O.H.C., dry sump, turbocharged
Engine Horsepower - 850 E-TEC® : 165
900 ACE™ Turbo R : 180
Cylinders & Displacement - 850 E-TEC® : 2 - 849 cc
900 ACE™ Turbo R : 3 - 899 cc
Bore & stroke - 850 E-TEC® : 82 mm - 80.4 mm
900 ACE™ Turbo R : 73 mm - 69.7 mm
Carburation - 850 E-TEC® : E-TEC® direct injection with additional booster injectors
900 ACE™ Turbo R : EFI
Fuel tank - 42 L
Oil tank capacity (2-stroke) - 850 E-TEC® : 3.4 L
900 ACE™ Turbo R : 3.3 L
Dry Weight - 850 E-TEC® : 596 lb
900 ACE™ Turbo R : 634 lb
Power Train Drive clutch / Driven clutch - 850 E-TEC® : pDrive™ with clickers / QRS Vent Plus
900 ACE™ Turbo R : pDrive™ / QRS Vent
Drive Sprocket Pitch - 73 mm / 2.86 in.
Dimensions Vehicle Overall Length - 3,293 mm / 129.6 in.
Vehicle Overall Width - 1,140 to 1,180 mm / 44.9 to 46.5 in.
Vehicle Overall Height - 1,280 mm / 50.4 in.
Ski Stance - 1,000 mm / 39 in. adjustable
Track Length x Width x Profile - Cobra WT:
154 x 20 x 1.8 in.
Suspensions Front suspension - RAS™ X
Front shock - HPG™ Plus
Front suspension travel - 220 mm / 8.7 in.
Rear suspension - SC™-5U
Center shock - HPG™ Plus
Rear shock - KYB† Pro 36
Rear suspension travel - 239 mm / 9.4 in.
Feature Frame - REV® Gen4
Skis - Pilot™ DS 3
Seating - 1-up modular with rear seat storage
Handlebar - Standard with J-hooks / Grab handle
Riser block height - 145 mm / 5.7 in.
Starter - Electric Starter
Reverse - 850 E-TEC® : RER™
900 ACE™ Turbo R : Electro-mechanic
Brake system - Brembo
Heated throttle lever grips - Standard
Gauge - Compact digital display
Windshield - 360 mm / 14 in.
Runner / Carbide - Square 3/8 in. / 4 in.
Bumpers (Front / Rear) - Heavy Duty / Standard
-
-
2023Expedition Sport
-
Crossover
- On & Off trail
- Rotax® 900 ACE™ engine
- pDrive™ clutch
- SC™-5U articulating rear suspension with locking mechanism (no tool required)
- 4.5-in. Digital Display
- RAS™ 3 suspension
![neo-yellow---black]()
The Expedition Sport couples agile, precise handling with industry-leading utility features such as standard tow hitch, plentiful cargo capacity, a blend of utility and comfort-focused suspensions, and updated, efficient Rotax engines.
-
Engine
Rotax® 900 ACE™
-
Rear suspension
SC™-5U
-
Front suspension
RAS™ X
-
Track
Charger
-
Special features
4.5-in. digital display, Pilot™ DS 2 skis
Engine Engine - Rotax® 900 ACE™
Engine details - Liquid-cooled, four-stroke D.O.H.C., dry sump
Engine Horsepower - 95
Cylinders & Displacement - 3 - 899 cc
Bore & stroke - 73 mm – 69.7 mm
Carburation - EFI
Fuel tank - 36 L
Oil tank capacity (2-stroke) - 3.3 L
Dry Weight - 578 lb
Power Train Drive clutch / Driven clutch - pDrive™ / QRS
Drive Sprocket Pitch - 73 mm / 2.86 in.
Dimensions Vehicle Overall Length - 3,309 mm / 130.3 in.
Vehicle Overall Width - 1,140 to 1,180 mm / 44.9 to 46.5 in.
Vehicle Overall Height - 1,513 mm / 59.6 in.
Ski Stance - 1,000 mm / 39 in. adjustable
Track Length x Width x Profile - Charger:
154 x 16 x 1.5 in.
Suspensions Front suspension - RAS™ X
Front shock - Motion Control
Front suspension travel - 210 mm / 8.3 in.
Rear suspension - SC™-5U
Center shock - Motion Control
Rear shock - HPG™
Rear suspension travel - 239 mm / 9.4 in.
Feature Frame - REV® Gen4
Skis - Pilot™ DS 2
Seating - 2-up
Handlebar - Standard with J-hooks
Riser block height - 145 mm / 5.7 in.
Starter - Electric Starter
Reverse - Mechanical
Brake system - Brembo
Heated throttle lever grips - Standard (driver only)
Gauge - Compact digital display
Windshield - 585 mm / 23 in.
Runner / Carbide - Square 3/8 in. / 4 in.
Bumpers (Front / Rear) - Standard / Heavy Duty with tongue type hitch
-
