2022

Expedition Xtreme

Sport-Utility
On & Off Trail

Rotax® 850 E-TEC® engine
KYB† Pro 36 aluminum piggyback rear shock with Easy-Adjust compression adjusters (22 clicks)
HPG™ Plus front shocks
4.5-in. digital display
RAS™ 3 front suspension

Expedition Xtreme

For those needing to explore winter beyond the daily tasks, the Expedition Xtreme - based on the REV Gen4 platform - brings rugged off-trail ability and powerful 850 E-TEC performance exceeding expectations of what a sport-utility snowmobile can be.

Engine

Rotax 850 E-TEC
Rear suspension

SC-5U
Front suspension

RAS 3
Track

Cobra WT : 154 x 20 x 1.8 in. (3,923 x 500 x 46 mm)
Special features

4.5-in. digital display, Pilot™ DS 3

Download spec sheet

Engine
Engine	Rotax® 850 E-TEC
Engine details	Liquid-cooled, two-stoke, eRAVE™
Engine Horsepower	165
Cylinders & Displacement	2 - 849 cc
Bore & stroke	82 mm - 80.4 mm
Carburation	E-TEC® direct injection with additional booster injectors
Fuel tank / Octane	Premium unleaded - 91
Fuel tank	42 / 11.1
Oil tank capacity (2-stroke)	3.4 L
Dry Weight	596 lb

Power Train
Drive clutch / Driven clutch	pDrive™ with clickers / QRS
Drive Sprocket Pitch	73 mm / 2.86 in.

Dimensions
Vehicle Overall Length	3,293 mm / 129.6 in.
Vehicle Overall Width	1,140 to 1,180 mm / 44.9 to 46.5 in.
Vehicle Overall Height	1,280 mm / 50.4 in.
Ski Stance	975 or 1,020 mm / 38.4 or 40.2 in.
Track Length x Width x Profile	Cobra WT 1.8

Suspensions
Front suspension	RAS™ 3
Front shock	HPG™ Plus
Front suspension travel	220 mm / 8.7 in.
Rear suspension	SC™-5U
Center shock	HPG™ Plus
Rear shock	KYB† PRO 36
Rear suspension travel	239 mm / 9.4 in.

Feature
Frame	REV® Gen4
Bodywork	Wide design
Skis	Pilot™ DS 3
Seating	1-up modular with rear seat storage
Handlebar	U-shaped aluminum with J-hooks / Low grab handle / Flexible handguards
Riser block height	145 mm / 5.7 in.
Starter	Electric Starter
Reverse	RER™
Brake system	Brembo brake with stainless-steel braided brake line
Heated throttle lever grips	Standard
Gauge	4.5 in. Digital Display
Windshield	360 mm / 14 in.
Runner / Carbide	Square 3/8 in. / 4 in.
Bumpers (Front / Rear)	Heavy Duty / Std

2022

Expedition SE

Sport-Utility
On & Off Trail

Rotax® 900 ACE™ Turbo - 150 engine
Air Control Suspension (ACS) rear shock
7.8-in. wide LCD display with BRP Connect available
RAS™ 3 front suspension
SC™-5U articulating rear suspension with locking mechanism (no tool required)

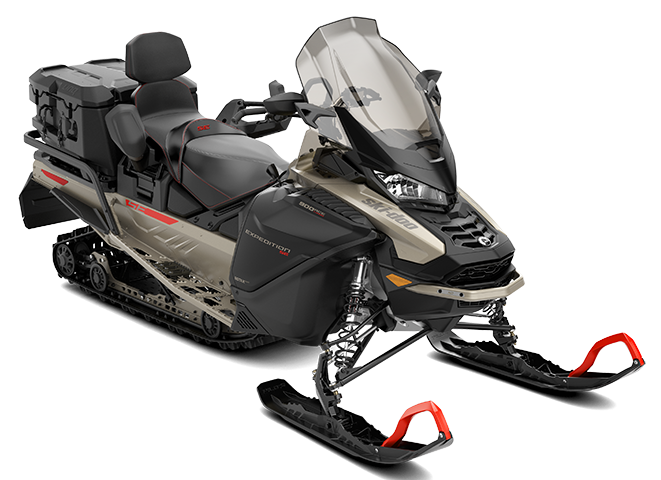

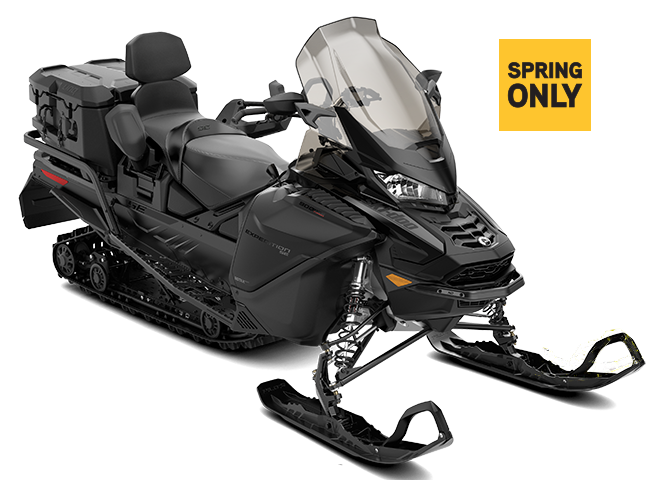

Expedition SE

The 2022 Expedition SE is where luxurious comfort and rugged capability meet with perfect chemistry. Based on the REV Gen4 platform, full of cozy features paired with work-oriented components to offer a remarkably capable sled both on- and off-trail.

Engine

Rotax 900 ACE Turbo
Rear suspension

SC-5U with ACS
Front suspension

RAS 3
Track

Silent Cobra WT : 154 x 20 x 1.5 in., Silent Ice Cobra WT : 154 x 20 x 1.5 in. opt.
Special features

7.8-in. wide LCD color display (opt.), Pilot™ 7.4 Skis

Download spec sheet

Engine
Engine	Rotax® 900 ACE Turbo 150
Engine details	Liquid-cooled, four-stroke D.O.H.C., dry sump, turbocharged
Engine Horsepower	150
Cylinders & Displacement	3 - 899 cc
Bore & stroke	73 mm - 69.7 mm
Carburation	EFI
Fuel tank / Octane	Premium unleaded - 91
Fuel tank	36 L
Oil tank capacity (2-stroke)	3.3 L
Dry Weight	694 lb

Power Train
Drive clutch / Driven clutch	pDrive™ / QRS Vent
Drive Sprocket Pitch	73 mm / 2.86 in.

Dimensions
Vehicle Overall Length	3,256 mm / 128.2 in.
Vehicle Overall Width	1,200 to 1,240 mm / 47.7 to 48.8 in.
Vehicle Overall Height	1,513 mm / 59.6 in.
Ski Stance	975 or 1,020 mm / 38.4 or 40.2 in.
Track Length x Width x Profile	Silent Crobra WT 1.5 Silent Ice Cobra WT 1.5

Suspensions
Front suspension	RAS™ 3
Front shock	HPG™
Front suspension travel	220 mm / 8.7 in.
Rear suspension	SC™-5U
Center shock	HPG™
Rear shock	ACS (Air Control Suspension)
Rear suspension travel	239 mm / 9.4 in.

Feature
Frame	REV® Gen4
Bodywork	Wide design
Skis	Pilot™ 7.4
Seating	2-up modular with underseat storage
Handlebar	U-shaped aluminum with J-hooks / Low grab handle
Riser block height	Adjustable-120 mm / 4.7 in.
Starter	Electric Starter
Reverse	Electro-mechanic
Brake system	Brembo brake with stainless-steel braided brake line
Heated throttle lever grips	Standard (driver and passenger)
Gauge	7.2 in.-Wide Digital Display Large panoramic 7.8" wide LCD color display
Windshield	585 mm / 23 in. with mirrors
Runner / Carbide	Square 3/8 in. / 4 in.
Bumpers (Front / Rear)	Heavy Duty / Hitch receiver

2022

Expedition LE

Sport-Utility
On & Off Trail

Rotax® 900 ACE™ Turbo - 150 and 900 ACE™ engines
High quality HPG shock package
20-in. wide Multi-LinQ plate with 125 lb / 56.7 kg cargo capacity
4.5-in. digital display
RAS™ 3 front suspension

Expedition LE

Offering every advantage for riders to enjoy off-trail exploration, premium touring and a get-your-boots-dirty work ethic, the REV Gen4 based Expedition LE is as versatile a sled as there is on the market.

Engine

Rotax 900 ACE Turbo, Rotax 900 ACE
Rear suspension

SC-5U
Front suspension

RAS 3
Track

Silent Cobra WT : 154 x 20 x 1.5 in.
Special features

4.5-in. digital display, Pilot™ 7.4 skis

Download spec sheet

Engine
Engine	Rotax® 900 ACE Rotax® 900 ACE Turbo 150
Engine details	Liquid-cooled, four-stroke D.O.H.C., dry sump Liquid-cooled, four-stroke D.O.H.C., dry sump, turbocharged
Engine Horsepower	95 150
Cylinders & Displacement	3 - 899 cc
Bore & stroke	73 mm - 69.7 mm
Carburation	EFI
Fuel tank / Octane	Regular unleaded - 87 Premium unleaded - 91
Fuel tank	36 L
Oil tank capacity (2-stroke)	3.3 L
Dry Weight	639 lb 669 lb

Power Train
Drive clutch / Driven clutch	pDrive™ with slider shoes / QRS pDrive™ / QRS Vent
Drive Sprocket Pitch	73 mm / 2.86 in.

Dimensions
Vehicle Overall Length	3,256 mm / 128.2 in.
Vehicle Overall Width	1,200 to 1,240 mm / 47.7 to 48.8 in.
Vehicle Overall Height	1,513 mm / 59.6 in.
Ski Stance	975 or 1,020 mm / 38.4 or 40.2 in.
Track Length x Width x Profile	Silent Crobra WT 1.5 Silent Crobra WT 1.8

Suspensions
Front suspension	RAS™ 3
Front shock	HPG™
Front suspension travel	220 mm / 8.7 in.
Rear suspension	SC™-5U
Center shock	HPG™
Rear shock	HPG™
Rear suspension travel	239 mm / 9.4 in.

Feature
Frame	REV® Gen4
Bodywork	Wide design
Skis	Pilot™ 7.4
Seating	2-up modular with underseat storage
Handlebar	U-shaped aluminum with J-hooks / Low grab handle
Riser block height	145 mm / 5.7 in.
Starter	Electric Starter
Reverse	RER™
Brake system	Brembo brake with stainless-steel braided brake line
Heated throttle lever grips	Standard (driver and passenger)
Gauge	4.5 in. Digital Display
Windshield	585 mm / 23 in. with mirrors
Runner / Carbide	Square 3/8 in. / 4 in.
Bumpers (Front / Rear)	Heavy Duty / Hitch receiver

2022

Expedition Sport

Sport-Utility
On & Off Trail

Rotax® 900 ACE™
pDrive™ clutch
4.5-in. digital display
RAS™ 3 front suspension
SC™-5U articulating rear suspension with locking mechanism (no tool required)

Expedition Sport

The Expedition Sport couples agile, precise handling with industry-leading utility features such as standard tow hitch, plentiful cargo capacity, a blend of utility and comfort-focused suspensions, and updated, efficient Rotax engines.

Engine

Rotax 900 ACE
Rear suspension

SC-5U
Front suspension

RAS 3
Track

Charger : 154 x 16 x 1.5 in.
Special features

4.5-in. digital display, Pilot™ DS 2 skis

Download spec sheet

Engine
Engine	Rotax® 900 ACE
Engine details	Liquid-cooled, four-stroke D.O.H.C., dry sump
Engine Horsepower	62
Cylinders & Displacement	2 - 600 cc
Bore & stroke	74 mm - 69.7 mm
Carburation	EFI
Fuel tank / Octane	Regular unleaded - 87
Fuel tank	36 L
Oil tank capacity (2-stroke)	2.1
Dry Weight	531 lb

Power Train
Drive clutch / Driven clutch	eDrive 2 / QRS
Drive Sprocket Pitch	73 mm / 2.86 in.

Dimensions
Vehicle Overall Length	3,309 mm / 130.3 in.
Vehicle Overall Width	1,140 to 1,180 mm / 44.9 to 46.5 in.
Vehicle Overall Height	1,513 mm / 59.6 in.
Ski Stance	975 or 1,020 mm / 38.4 or 40.2 in.
Track Length x Width x Profile	Charger 1.5

Suspensions
Front suspension	RAS™ 3
Front shock	Motion Control
Front suspension travel	210 mm / 8.3 in.
Rear suspension	SC™-5U
Center shock	Motion Control
Rear shock	HPG™
Rear suspension travel	239 mm / 9.4 in.

Feature
Frame	REV® Gen4
Bodywork	Wide design
Skis	Pilot™ DS 2
Seating	2-up
Handlebar	U-shaped aluminum with J-hooks
Riser block height	145 mm / 5.7 in.
Starter	Electric Starter
Reverse	Mechanical
Brake system	Brembo brake with stainless-steel braided brake line
Heated throttle lever grips	Standard
Gauge	4.5 in. Digital Display
Windshield	585 mm / 23 in.
Runner / Carbide	Square 3/8 in. / 4 in.
Bumpers (Front / Rear)	Std / Heavy Duty with tongue type hitch

2022 EXPEDITION

Expedition Xtreme

Expedition SE

Expedition LE

Expedition Sport
