Explore Expedition Packages & Specifications
-

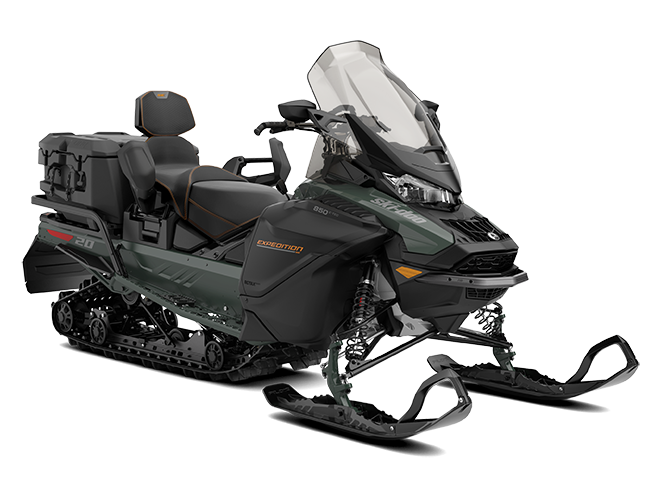

2024Expedition SE
Transportation and preparation not included.-
Crossover
- On & Off Trail
- The utmost touring crossover-utility vehicle with an incredible list of work and luxury features.
- Four Rotax® engines available
- Air Control Suspension (ACS) rear shock
- Ultra large LinQ utility cargo box with 135 L / 35.7 US gal of storage
- Removable passenger seat with heated grips
![terra-green]()
![black]()
The 2023 Expedition SE is where luxurious comfort and rugged capability meet with perfect chemistry. Based on the REV Gen4 platform, full of cozy features paired with work-oriented components to offer a remarkably capable sled both on- and off-trail.
Starting at $17,999
with Transport and Preparation
Transportation and preparation not included.-
Engine
Rotax® 850 E-TEC®, Rotax® 900 ACE™, Rotax® 900 ACE™ Turbo, Rotax® 900 ACE™ Turbo R
-
Rear suspension
SC™-5U with ACS
-
Front suspension
RAS™ X
-
Track
Silent Cobra WT, Silent Ice Cobra WT
-
Special features
7.8-in. wide LCD color display, Pilot™ 7.4 Skis
Engine Engine - 900 ACE Turbo R
Rotax® 850 E-TEC
Rotax®900 ACE
Engine details - 850 E-TEC® : Liquid-cooled, two-stroke, eRAVE™
900 ACE™ : Liquid-cooled, four-stroke D.O.H.C., dry sump
900 ACE™ Turbo : Liquid-cooled, four-stroke D.O.H.C., dry sump, turbocharged
900 ACE™ Turbo R : Liquid-cooled, four-stroke D.O.H.C., dry sump, turbocharged
Engine Horsepower - 850 E-TEC® : 165
900 ACE™ : 95
900 ACE™ Turbo : 130
900 ACE™ Turbo R : 180
Cylinders & Displacement - 850 E-TEC® : 2 - 849 cc
900 ACE™ : 3 - 899 cc
900 ACE™ Turbo : 3 - 899 cc
900 ACE™ Turbo R : 3 - 899 cc
Bore & stroke - 850 E-TEC® : 82 mm – 80.4 mm
900 ACE™ : 73 mm – 69.7 mm
900 ACE™ Turbo : 73 mm – 69.7 mm
900 ACE™ Turbo R : 73 mm – 69.7 mm
Carburation - 850 E-TEC® : E-TEC® direct injection with additional booster injectors
900 ACE™ : EFI
900 ACE™ Turbo : EFI
900 ACE™ Turbo R : EFI
Fuel tank / Octane - 850 E-TEC® : Premium unleaded - 91
900 ACE™ : Regular unleaded - 87
900 ACE™ Turbo : Premium unleaded - 91
900 ACE™ Turbo R : Premium unleaded - 91
Fuel tank - 42 L / 11.1 US gal
Oil tank capacity (2-stroke) - 850 E-TEC® : 3.4 L / 3.6 qt
900 ACE™ : 3.3 L / 3.5 qt
900 ACE™ Turbo : 3.3 L / 3.5 qt
900 ACE™ Turbo R : 3.3 L / 3.5 qt
Dry Weight - 850 E-TEC® : 654 lb
900 ACE™ : 666 lb
900 ACE™ Turbo : 689 lb
900 ACE™ Turbo R : 694 lb
Power Train Drive clutch / Driven clutch - 850 E-TEC® : pDrive™ with clickers / QRS Vent Plus
900 ACE™ : pDrive™ / QRS
900 ACE™ Turbo : pDrive™ / QRS Vent
900 ACE™ Turbo R : pDrive™ / QRS Vent
Drive Sprocket Pitch - 73 mm / 2.86 in.
Dimensions Vehicle Overall Length - 3,256 mm / 128.2 in.
Vehicle Overall Width - 1,200 to 1,240 mm / 47.7 to 48.8 in.
Vehicle Overall Height - 1,513 mm / 59.6 in.
Ski Stance - 1,000 mm / 39 in. adjustable
Track Length x Width x Profile - Silent Cobra WT:
154 x 20 x 1.5 in.
Silent Ice Cobra WT:
154 x 20 x 1.5 in. opt.
Silent Cobra WT:
154 x 20 x 1.8 in. opt.
Suspensions Suspension option - Standard
Front suspension - RAS™ X
Front shock - KYB 36
Front suspension travel - 220 mm / 8.7 in.
Rear suspension - SC™-5U
Center shock - KYB 36
Rear shock - ACS (Air Control Suspension)
Rear suspension travel - 239 mm / 9.4 in.
Feature Frame - REV® Gen4
Skis - Pilot™ 7.4
Seating - WideTrack 2-up
Handlebar - Standard with J-hooks / Grab handle
Riser block height - Adjustable-120 mm / 4.7 in.
Starter - Electric Starter
Reverse - 850 E-TEC® : RER™
900 ACE™ : Electro-mechanic
900 ACE™ Turbo : Electro-mechanic
900 ACE™ Turbo R : Electro-mechanic
Brake system - Brembo
Heated throttle lever grips - Standard (driver and passenger)
Gauge - 7.2-in. digital
7.8-in. wide LCD color (opt. on ACE engines)
Windshield - Ultra-high with mirrors
Runner / Carbide - Square 3/8 in. / 4 in.
Bumpers (Front / Rear) - Heavy Duty / Hitch receiver
-
-
2024Expedition LE
Transportation and preparation not included.-
Crossover
- On & Off Trail
- A hybrid touring crossover-utility vehicle with premium features for off-trail exploration and on-trail cruises.
- Four Rotax® engines available
- Available with 20 in. or 24 in. track options
- 20-in. wide Multi-LinQ plate with 125 lb / 56.7 kg cargo capacity
- Removable passenger seat with heated grips
![arctic-desert]()
![black]()
Offering every advantage for riders to enjoy off-trail exploration, premium touring and a get-your-boots-dirty work ethic, the REV Gen4 based Expedition LE is as versatile a sled as there is on the market.
Starting at $16,699
with Transport and Preparation
Transportation and preparation not included.-
Engine
Rotax® 600R E-TEC®, Rotax® 900 ACE™, Rotax® 900 ACE™ Turbo, Rotax® 900 ACE™ Turbo R
-
Rear suspension
SC™-5U
-
Front suspension
RAS™ X
-
Track
Silent Cobra WT, Silent Cobra SWT
-
Special features
Compact Digital Display, Pilot™ 7.4 skis
Engine Engine - Rotax® 600R E-TEC
Rotax®900 ACE
900 ACE Turbo
900 ACE Turbo R
Engine details - 600R E-TEC® : Liquid-cooled, two-stroke, eRAVE™
900 ACE™ : Liquid-cooled, four-stroke D.O.H.C., dry sump
900 ACE™ Turbo : Liquid-cooled, four-stroke D.O.H.C., dry sump, turbocharged
900 ACE™ Turbo R : Liquid-cooled, four-stroke D.O.H.C., dry sump, turbocharged
Engine Horsepower - 600R E-TEC® : 125
900 ACE™ : 95
900 ACE™ Turbo : 130
900 ACE™ Turbo R : 180
Cylinders & Displacement - 600R E-TEC® : 2 - 599.4 cc
900 ACE™ : 3 - 899 cc
900 ACE™ Turbo : 3 - 899 cc
900 ACE™ Turbo R : 3 - 899 cc
Bore & stroke - 600R E-TEC® : 72.3 mm – 73 mm
900 ACE™ : 73 mm – 69.7 mm
900 ACE™ Turbo : 73 mm – 69.7 mm
900 ACE™ Turbo R : 73 mm – 69.7 mm
Carburation - 600R E-TEC® : E-TEC® direct injection
900 ACE™ : EFI
900 ACE™ Turbo : EFI
900 ACE™ Turbo R : EFI
Fuel tank / Octane - 600R E-TEC® : Premium unleaded - 91
900 ACE™ : Regular unleaded - 87
900 ACE™ Turbo : Premium unleaded - 91
900 ACE™ Turbo R : Premium unleaded - 91
Fuel tank - 42 L / 11.1 US gal
Oil tank capacity (2-stroke) - 600R E-TEC® : 3.4 L / 3.6 qt
900 ACE™ : 3.3 L / 3.5 qt
900 ACE™ Turbo : 3.3 L / 3.5 qt
900 ACE™ Turbo R : 3.3 L / 3.5 qt
Dry Weight - 600R E-TEC® : 617 lb (20 in.), 638 lb (24 in.)
900 ACE™ : 640 lb (20 in.), 661 lb (24 in.)
900 ACE™ Turbo : 666 lb (20 in.), 686 lb (24 in.)
900 ACE™ Turbo R : 670 lb (20 in.), 691 lb (24 in.)
Power Train Drive clutch / Driven clutch - 600R E-TEC® : pDrive™ with clickers / QRS Vent
900 ACE™ : pDrive™ / QRS
900 ACE™ Turbo : pDrive™ / QRS Vent
900 ACE™ Turbo R : pDrive™ / QRS Vent
Drive Sprocket Pitch - 73 mm / 2.86 in.
74 mm / 2.86 in.
Dimensions Vehicle Overall Length - 3,256 mm / 128.2 in.
Vehicle Overall Width - 1,200 to 1,240 mm / 47.7 to 48.8 in.
Vehicle Overall Height - 1,513 mm / 59.6 in.
Ski Stance - 1,000 mm / 39 in. adjustable
Track Length x Width x Profile - Silent Cobra WT:
154 x 20 x 1.5 in.
Silent Cobra SWT:
154 x 24 x 1.5 in. opt.
Suspensions Suspension option - Standard
Front suspension - RAS™ X
Front shock - KYB 36
Front suspension travel - 220 mm / 8.7 in.
Rear suspension - SC™-5U
Center shock - KYB 36
Rear shock - KYB 36
Rear suspension travel - 239 mm / 9.4 in.
Feature Frame - REV® Gen4
Skis - Pilot™ 7.4
Seating - WideTrack 2-up
Handlebar - Standard with J-hooks / Grab handle
Riser block height - 145 mm / 5.7 in.
Starter - Electric Starter
Reverse - 600R E-TEC® : RER™
900 ACE™ : Electro-mechanic
900 ACE™ Turbo : Electro-mechanic
900 ACE™ Turbo R : Electro-mechanic
Brake system - Brembo
Heated throttle lever grips - Standard (driver and passenger)
Gauge - 4.5-in. digital
Windshield - Ultra-high with mirrors
Runner / Carbide - Square 3/8 in. / 4 in.
Bumpers (Front / Rear) - Heavy Duty / Hitch receiver
-
-
2024Expedition Xtreme
Transportation and preparation not included.-
Crossover
- On & Off Trail
- The high-performance sport-utility sled with capability to go just about anywhere.
- Two Rotax® engines available
- KYB Pro 36 rear shock and KYB 36 Plus front shocks
- 20-in. wide Multi-LinQ plate with 125 lb capacity
- Electric starter
![black]()
![neo-mint]()
Ready to wander as soon as it’s finished the job, the Expedition Xtreme delivers rugged off-trail ability with premium trail handling to provide riders exceptional capability and performance no matter where they roam.
Starting at $19,149
with Transport and Preparation
Transportation and preparation not included.-
Engine
Rotax® 850 E-TEC®, Rotax® 900 ACE™ Turbo R
-
Rear suspension
SC™-5U
-
Front suspension
RAS™ X
-
Track
Cobra WT
-
Special features
Compact Digital Display, Pilot™ DS 3 Skis
Engine Engine - Rotax® 850 E-TEC
900 ACE Turbo R
Engine details - 850 E-TEC® : Liquid-cooled, two-stroke, eRAVE™
900 ACE™ Turbo R : Liquid-cooled, four-stroke D.O.H.C., dry sump, turbocharged
Engine Horsepower - 850 E-TEC® : 165
900 ACE™ Turbo R : 180
Cylinders & Displacement - 850 E-TEC® : 2 - 849 cc
900 ACE™ Turbo R : 3 - 899 cc
Bore & stroke - 850 E-TEC® : 82 mm - 80.4 mm
900 ACE™ Turbo R : 73 mm - 69.7 mm
Carburation - 850 E-TEC® : E-TEC® direct injection with additional booster injectors
900 ACE™ Turbo R : EFI
Fuel tank / Octane - Premium unleaded - 91
Fuel tank - 42 L / 11.1 US gal
Oil tank capacity (2-stroke) - 850 E-TEC® : 3.4 L / 3.6 qt
900 ACE™ Turbo R : 3.3 L / 3.5 qt
Dry Weight - 850 E-TEC® : 596 lb
900 ACE™ Turbo R : 634 lb
Power Train Drive clutch / Driven clutch - 850 E-TEC® : pDrive™ with clickers / QRS Vent Plus
900 ACE™ Turbo R : pDrive™ / QRS Vent
Drive Sprocket Pitch - 73 mm / 2.86 in.
Dimensions Vehicle Overall Length - 3,293 mm / 129.6 in.
Vehicle Overall Width - 1,140 to 1,180 mm / 44.9 to 46.5 in.
Vehicle Overall Height - 1,280 mm / 50.4 in.
Ski Stance - 1,000 mm / 39 in. adjustable
Track Length x Width x Profile - Cobra WT:
154 x 20 x 1.8 in.
Suspensions Suspension option - Standard
Front suspension - RAS™ X
Front shock - KYB 36 Plus
Front suspension travel - 220 mm / 8.7 in.
Rear suspension - SC™-5U
Center shock - KYB 36 Plus
Rear shock - KYB† Pro 36
Rear suspension travel - 239 mm / 9.4 in.
Feature Frame - REV® Gen4
Skis - Pilot™ DS 3
Seating - WideTrack 1-up
Handlebar - Standard with J-hooks / Grab handle
Riser block height - 145 mm / 5.7 in.
Starter - Electric Starter
Reverse - 850 E-TEC® : RER™
900 ACE™ Turbo R : Electro-mechanic
Brake system - Brembo
Heated throttle lever grips - Standard
Gauge - 4.5-in. digital
Windshield - Low
Runner / Carbide - Square 3/8 in. / 4 in.
Bumpers (Front / Rear) - Heavy Duty / Std
-
-
2024Expedition Sport
Transportation and preparation not included.-
Crossover
- On & Off Trail
- Ultra-responsive chassis for on- or off-trail rides and extensive array of sport-utility and 2-up features.
- pDrive™ clutch
- 2-up seat with removable LinQ passenger backrest and handholds
- Heavy duty rear bumper with tongue type hitch
![neo-yellow]()
The Expedition Sport couples agile, precise handling with industry-leading utility features such as standard tow hitch, plentiful cargo capacity, a blend of utility and comfort-focused suspensions, and updated, efficient Rotax engines.
Starting at $11,899
with Transport and Preparation
Transportation and preparation not included.-
Engine
Rotax® 600 EFI, Rotax® 600 ACE™, Rotax® 900 ACE™
-
Rear suspension
SC™-5U
-
Front suspension
RAS™ X
-
Track
Charger
-
Special features
Compact Digital Display, Pilot™ DS 2 skis
Engine Engine - 600 EFI
600 ACE
900 ACE
Engine details - 600 EFI : Liquid-cooled, two-stroke
600 ACE™ : Liquid-cooled, four-stroke D.O.H.C., dry sump
900 ACE™ : Liquid-cooled, four-stroke D.O.H.C., dry sump
Engine Horsepower - 600 EFI : 85
600 ACE™ : 62
900 ACE™ : 95
Cylinders & Displacement - 600 EFI : 2 - 599.4 cc
600 ACE™ : 2 - 600 cc
900 ACE™ : 3 - 899 cc
Bore & stroke - 600 EFI : 72.3 mm – 73 mm
600 ACE™ : 73 mm – 69.7 mm
900 ACE™ : 73 mm – 69.7 mm
Carburation - EFI
Fuel tank / Octane - 600 EFI : Regular unleaded - 87
600 ACE™ : Regular unleaded - 87
900 ACE™ : Regular unleaded - 87
Fuel tank - 36 L / 9.5 US gal
Oil tank capacity (2-stroke) - 600 EFI : 3.4 L / 3.6 qt
600 ACE™ : 2.1 L / 2.2 qt
900 ACE™ : 3.3 L / 3.5 qt
Dry Weight - 600 EFI : 504 lb
600 ACE™ : 531 lb
900 ACE™ : 552 lb
Power Train Drive clutch / Driven clutch - 600 EFI : pDrive™ / QRS
600 ACE™ : eDrive™ 2 / QRS
900 ACE™ : pDrive™ / QRS
Drive Sprocket Pitch - 73 mm / 2.86 in.
Dimensions Vehicle Overall Length - 3,309 mm / 130.3 in.
Vehicle Overall Width - 1,140 to 1,180 mm / 44.9 to 46.5 in.
Vehicle Overall Height - 1,513 mm / 59.6 in.
Ski Stance - 1,000 mm / 39 in. adjustable
Track Length x Width x Profile - Charger:
154 x 16 x 1.5 in.
Suspensions Suspension option - Standard
Front suspension - RAS™ X
Front shock - Motion Control
Front suspension travel - 210 mm / 8.3 in.
Rear suspension - SC™-5U
Center shock - Motion Control
Rear shock - KYB 36
Rear suspension travel - 239 mm / 9.4 in.
Feature Frame - REV® Gen4
Skis - Pilot™ DS 2
Seating - Trail wide 2-up Seat LinQ Passenger Backrest
Handlebar - Standard with J-hooks
Riser block height - 145 mm / 5.7 in.
Starter - Electric Starter
Reverse - 600 EFI : RER™
600 ACE™ : Mechanical
900 ACE™ : Mechanical
Brake system - Brembo
Heated throttle lever grips - Standard (driver only)
Gauge - 4.5-in. digital
Windshield - High
Runner / Carbide - Square 3/8 in. / 4 in.
Bumpers (Front / Rear) - Std / Heavy Duty with tongue type hitch
-
Download spec sheet
You may also like
-
2025EXPEDITION
On- or Off-trail, Ski-Doo Expedition models pack incredible versatility and capability into one sled. Work at the cottage one hour, start a new adventure the next.
-
2024BACKCOUNTRY
Transportation and preparation not included.A true zero compromise 50/50 on-trail or off-trail snowmobile. The Backcountry delivers the agile performance and adrenaline these adventure-seeking riders love.
-
2024SKANDIC
Transportation and preparation not included.Brute strength meets refined capability with Skandic. Massive towing capacity and large footprint make easy work of big jobs and great flotation to go wherever it is needed.
