Deep Snow
- Rotax® 850 E-TEC® and 850 E-TEC® Turbo R engines available
- tMotion™ XT rear suspension with rigid rear arm
- Adjustable limiter strap with more range and Adjustable brake lever
- PowderMax† X-Light 3 in. track with full-width rods
- Pilot™ DS 4 Skis
![platinum-silver---manta-green]()
![timeless-black--painted-]()

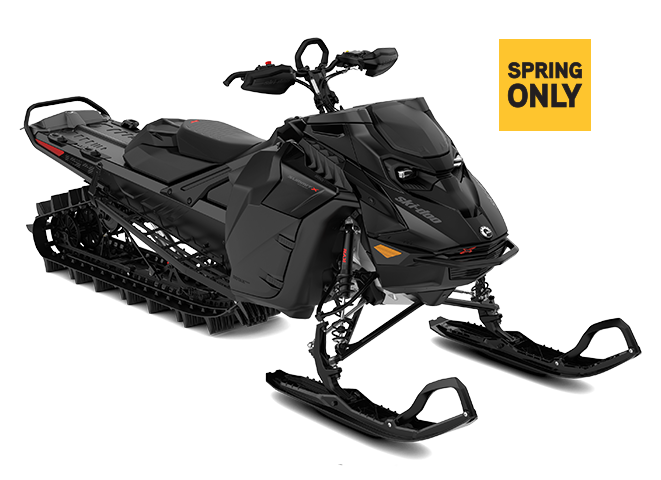

The 2023 Summit X with Expert Package reveals winter's full potential with an all-new REV Gen5 platform, dynamic power of the 850 E-TEC Turbo R and rider-inspired features that push riders to elevate their game beyond what they ever thought possible.
-
Engine
Rotax® 850 E-TEC®, Rotax® 850 E-TEC® Turbo R
-
Rear suspension
tMotion™ XT with rigid rear arm
-
Front suspension
RAS™ 3 with 34 in. ski stance
-
Track
PowderMax† X-Light
-
Special features
10.25" color touchscreen display with BRP Connect available, Pilot™ DS 4 skis
Engine Engine - Rotax® 850 E-TEC
Rotax® 850 E-TEC Turbo R
Engine details - 850 E-TEC® : Liquid-cooled, two-stoke, eRAVE™
850 E-TEC® Turbo R : Liquid-cooled, two-stroke, turbocharged, eRAVE™
Engine Horsepower - 850 E-TEC® : 165
850 E-TEC® Turbo R : 165 up to 8,000 ft.
Cylinders & Displacement - 2 - 849 cc
Bore & stroke - 82 mm - 80.4 mm
Carburation - E-TEC® direct injection with additional booster injectors
Fuel tank / Octane - Premium unleaded - 91
Fuel tank - 36 L / 9.5 US gal
Oil tank capacity (2-stroke) - 3.4 L / 3.6 qt
Dry Weight - 850 E-TEC® : 430 lb (154 in.), 437 lb (165 in.)
850 E-TEC® Turbo R : 449 lb (154 in.), 456 lb (165 in.), 462 lb (175 in.)
Power Train Drive clutch / Driven clutch - pDrive™ with clickers / QRS Vent Plus
Drive Sprocket Pitch - 89 mm / 3.5 in.
Dimensions Vehicle Overall Length - 3,188 mm / 125.5 in. (154 in.)
3,299 mm / 129.9 in. (165 in.)
3,454 mm / 136 in. (175 in.)
Vehicle Overall Width - 1,080 to 1,110 mm / 42.5 to 43.7 in.
Vehicle Overall Height - 1,306 mm / 51.4 in.
Ski Stance - 864 mm / 34 in. adjustable
Track Length x Width x Profile - PowderMax† X-Light :
154 x 16 x 3.0 in.
165 x 16 x 3.0 in.
175 x 16 x 3.0 in. (850 E-TEC® Turbo only)
Suspensions Suspension option - Standard
Front suspension - RAS™ 3
Front shock - HPG™ Plus with lightweight springs
Front suspension travel - 207 mm / 8.2 in.
Rear suspension - tMotion™ XT
Center shock - HPG™ Plus with lightweight spring
Rear shock - KYB† Pro 36 EA-3
Rear suspension travel - 264 mm / 10.4 in.
Feature Frame - REV® Gen5
Skis - Pilot™ DS 4
Seating - Deep snow ultra compact and lightweight
Handlebar - Tapered with J-hooks / Grab handle
Riser block height - 120 mm / 4.7 in.
Starter - E-TEC® SHOT Starter
Reverse - RER™
Brake system - Brembo
Heated throttle lever grips - Standard
Gauge - Compact Digital Display
10.25 in. Color Touchscreen Display with BRP connect (Option already sold out for the 2022-2023 season)
Windshield - Optional
Runner / Carbide - Square 3/8 in. / 4 in.
Bumpers (Front / Rear) - Std / Std
-
-

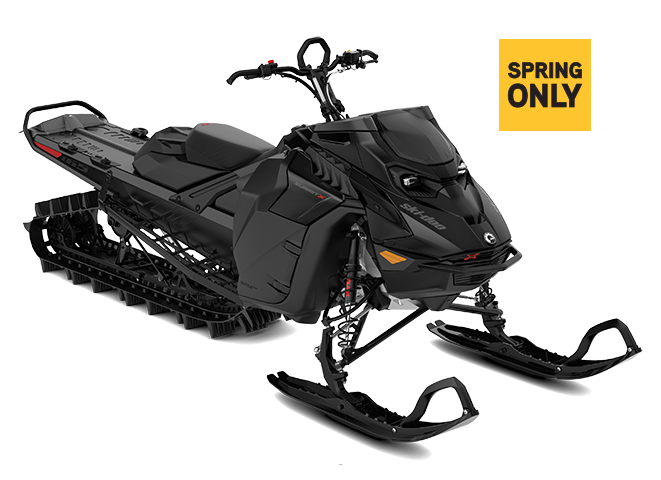

2023Summit X
-
Deep Snow
- Rotax® 850 E-TEC® and 850 E-TEC® Turbo R engines available
- Full-length extruded profile running boards with large openings
- 34 in. ski stance
- HPG™ Plus Shock package
- 10.25" color touchscreen display with BRP Connect available
![timeless-black--painted-]()
![catalyst-grey---spartan-red]()
Freshly minted in the REV Gen5 platform with 850 E-TEC Turbo R engine, Summit X broadens the possibilities with effortless deep-snow agility, instant power and a yearning to go further. It begs you to push the limits - and rewards you every time you do.
-
Engine
Rotax® 850 E-TEC®, Rotax® 850 E-TEC® Turbo R
-
Rear suspension
tMotion™ X
-
Front suspension
RAS™ 3 with 34 in. ski stance
-
Track
PowderMax† X-Light with FlexEdge™, PowderMax† Light with FlexEdge™
-
Special features
10.25" color touchscreen display with BRP Connect available
Engine Engine - Rotax® 850 E-TEC
Rotax® 850 E-TEC Turbo R
Engine details - 850 E-TEC® : Liquid-cooled, two-stoke, eRAVE™
850 E-TEC® Turbo R : Liquid-cooled, two-stroke, turbocharged, eRAVE™
Engine Horsepower - 850 E-TEC® : 165
850 E-TEC® Turbo R : 165 up to 8,000 ft.
Cylinders & Displacement - 2 - 849 cc
Bore & stroke - 82 mm - 80.4 mm
Carburation - E-TEC® direct injection with additional booster injectors
Fuel tank / Octane - Premium unleaded - 91
Fuel tank - 36 L / 9.5 US gal
Oil tank capacity (2-stroke) - 3.4 L / 3.6 qt
Dry Weight - 850 E-TEC® : 429 lb (154 in.), 436 lb (165 in.)
850 E-TEC® Turbo R : 448 lb (154 in.), 454 lb (165 in.)
Power Train Drive clutch / Driven clutch - pDrive™ with clickers / QRS Vent Plus
Drive Sprocket Pitch - 89 mm / 3.5 in.
Dimensions Vehicle Overall Length - 3,188 mm / 125.5 in. (154 in.)
3,299 mm / 129.9 in. (165 in.)
Vehicle Overall Width - 1,080 to 1,110 mm / 42.5 to 43.7 in.
Vehicle Overall Height - 1,395 mm / 54.9 in.
Ski Stance - 1,395 mm / 54.9 in.
Track Length x Width x Profile - PowderMax† X-Light with FlexEdge™:
154 x 16 x 3.0 in.
165 x 16 x 3.0 in.
PowderMax† Light with FlexEdge™:
154 x 16 x 2.5 in.
165 x 16 x 2.5 in. (sea-level opt. only)
Suspensions Suspension option - Standard
Front suspension - RAS™ 3
Front shock - HPG™ Plus with lightweight springs
Front suspension travel - 207 mm / 8.2 in.
Rear suspension - tMotion™ X
Center shock - HPG™ Plus with lightweight spring
Rear shock - HPG™ Plus
Rear suspension travel - 264 mm / 10.4 in.
Feature Frame - REV® Gen5
Skis - Pilot™ DS 3
Seating - Deep snow compact and lightweight
Handlebar - Tapered with J-hooks / Grab handle
Riser block height - 165 mm / 6.5 in.
Starter - E-TEC® SHOT Starter
Electric Starter (opt. select models)
Manual Starter (opt. select models)
Reverse - RER™
Brake system - Brembo
Heated throttle lever grips - Standard
Gauge - Compact Digital Display
10.25 in. Color Touchscreen Display with BRP connect (Option already sold out for the 2022-2023 season)
Windshield - Optional
Runner / Carbide - Square 3/8 in. / 4 in.
Bumpers (Front / Rear) - Std / Std
-
-

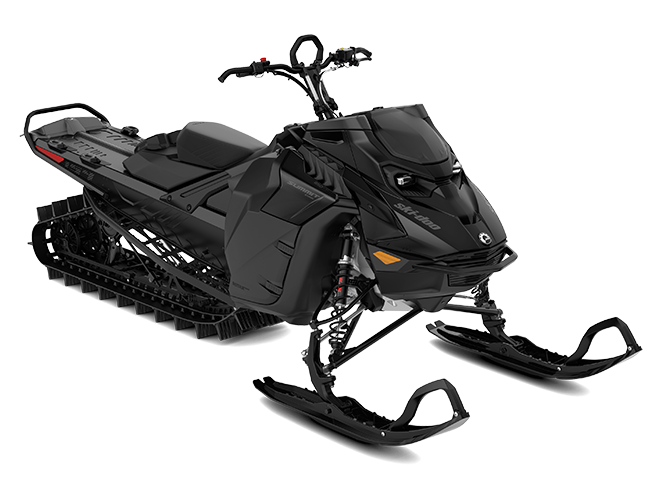

2023Summit Edge
-
Deep Snow
- Rotax® 850 E-TEC® engine
- Short tunnel
- Compact and lightweight deep snow seat
- Premium LED Headlights
![timeless-black--painted-]()
![catalyst-grey---neo-yellow]()
When winter urges to push a little harder, explore a little deeper, the 2023 Summit Edge is the answer. Built on the new REV Gen5 platform, the Edge makes hillclimbs, treelines or open powder bowls more epic with its agile, effortless handling and addicting Rotax power.
-
Engine
Rotax® 850 E-TEC®
-
Rear suspension
tMotion™ X
-
Front suspension
RAS™ 3 with lightweight ski spindle and revised ski stopper
-
Track
PowderMax† Light with FlexEdge™, PowderMax† X-Light with FlexEdge™
-
Special features
Electric Starter, Compact Digital Display
Engine Engine - Rotax® 850 E-TEC
Engine details - Liquid-cooled, two-stoke, eRAVE™
Engine Horsepower - 165
Cylinders & Displacement - 2 - 849 cc
Bore & stroke - 82 mm - 80.4 mm
Carburation - E-TEC® direct injection with additional booster injectors
Fuel tank / Octane - Premium unleaded - 91
Fuel tank - 36 L / 9.5 US gal
Oil tank capacity (2-stroke) - 3.4 L / 3.6 qt
Dry Weight - 445 lb (154 in.)
448 lb (165 in.)
454 lb (175 in.)
Power Train Drive clutch / Driven clutch - pDrive™ with clickers / QRS Vent Plus
Drive Sprocket Pitch - 89 mm / 3.5 in.
Dimensions Vehicle Overall Length - 3,188 mm / 125.5 in. (154 in.)
3,299 mm / 129.9 in. (165 in.)
Vehicle Overall Width - 1,080 to 1,110 mm / 42.5 to 43.7 in.
Vehicle Overall Height - 1,395 mm / 54.9 in.
Ski Stance - 930 mm / 36 in. adjustable
Track Length x Width x Profile - PowderMax† X-Light with FlexEdge™:
154 x 16 x 3.0 in.
165 x 16 x 3.0 in.
175 x 16 x 3.0 in.
PowderMax† Light with FlexEdge™:
154 x 16 x 2.5 in.
Suspensions Suspension option - Standard
Front suspension - RAS™ 3
Front shock - HPG™
Front suspension travel - 215 mm / 8.5 in.
Rear suspension - tMotion™ X
Center shock - HPG™
Rear shock - HPG™
Rear suspension travel - 264 mm / 10.4 in.
Feature Frame - REV® Gen5
Skis - Pilot™ DS 3
Seating - Deep snow compact and lightweight
Handlebar - Tapered with J-hooks / Grab handle
Riser block height - 165 mm / 6.5 in.
Starter - Electric Starter
Reverse - RER™
Brake system - Brembo
Heated throttle lever grips - Standard
Gauge - Compact Digital Display
Windshield - Optional
Runner / Carbide - Square 3/8 in. / 4 in.
Bumpers (Front / Rear) - Std / Std
-
-

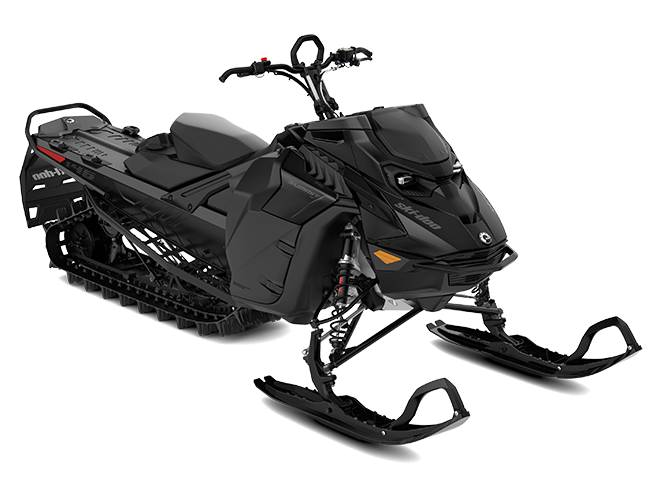

2023Summit SP
-
Deep Snow
- Rotax® 850 E-TEC® engine
- tMotion™ X rear suspension
- PowderMax† X-Light 3 in. track with FlexEdge™ available
- High quality HPG™ shock package
![neo-yellow---black]()
![timeless-black--painted-]()
The 2023 Summit SP enables a rider to push the boundaries of the terrain and themselves with the new REV Gen5 platform. Incredibly agile and effortless to ride with inspiring looks, the SP packs instant power delivery for conquering technical deep-snow terrain.
-
Engine
Rotax® 850 E-TEC®
-
Rear suspension
tMotion™ X
-
Front suspension
RAS™ 3 with lightweight ski spindle and revised ski stopper
-
Track
PowderMax† Light with FlexEdge™, PowderMax† X-Light with FlexEdge™
-
Special features
Electric Starter, Compact Digital Display
Engine Engine - Rotax® 850 E-TEC
Engine details - Liquid-cooled, two-stoke, eRAVE™
Engine Horsepower - 165
Cylinders & Displacement - 2 - 849 cc
Bore & stroke - 82 mm - 80.4 mm
Carburation - E-TEC® direct injection with additional booster injectors
Fuel tank / Octane - Premium unleaded - 91
Fuel tank - 36 L / 9.5 US gal
Oil tank capacity (2-stroke) - 3.4 L / 3.6 qt
Dry Weight - 447 lb (146 in.)
443 lb (154 in.)
447 lb (165 in.)
Power Train Drive clutch / Driven clutch - pDrive™ with clickers / QRS Vent Plus
Drive Sprocket Pitch - 73 mm / 2.86 in. (146 in.)
89 mm / 3.5 in. (154 - 165 in.)
Dimensions Vehicle Overall Length - 3,208 mm / 122.4 in. (146 in.)
3,318 mm / 130.6 in. (154 in.)
3,451 mm / 135.9 in. (165 in.)
Vehicle Overall Width - 1,080 to 1,110 mm / 42.5 to 43.7 in.
Vehicle Overall Height - 1,395 mm / 54.9 in.
Ski Stance - 930 mm / 36 in. adjustable
Track Length x Width x Profile - PowderMax† II with FlexEdge™:
146 x 16 x 2.5 in.
PowderMax† Light with FlexEdge™:
154 x 16 x 2.5 in.
165 x 16 x 2.5 in.
PowderMax† X-Light with FlexEdge™:
154 x 16 x 3.0 in.
165 x 16 x 3.0 in.
Suspensions Suspension option - Standard
Front suspension - RAS™ 3
Front shock - HPG™
Front suspension travel - 215 mm / 8.5 in.
Rear suspension - tMotion™ X
Center shock - HPG™
Rear shock - HPG™
Rear suspension travel - 264 mm / 10.4 in.
Feature Frame - REV® Gen5
Skis - Pilot™ DS 3
Seating - Deep snow
Handlebar - Tapered with J-hooks / Grab handle
Riser block height - 165 mm / 6.5 in.
Starter - Electric Starter
Electric Starter
E-TEC® SHOT Starter (opt.)
Manual Starter (opt. select models)
Reverse - RER™
Brake system - Brembo
Heated throttle lever grips - Standard
Gauge - Compact Digital Display
Windshield - Optional
Runner / Carbide - Square 3/8 in. / 4 in.
Bumpers (Front / Rear) - Std / Std
-
Download spec sheet
