Explore Summit NEO Packages & Specifications
-
2025Summit NEO
-
Deep Snow
- Rotax® 600 EFI - 55 Engine
- REV® Gen4 Platform
- Intermediate size / Compact ergonomics
- 146 x 14 x 1.6 in. Cobra track
- Motion Control Shocks

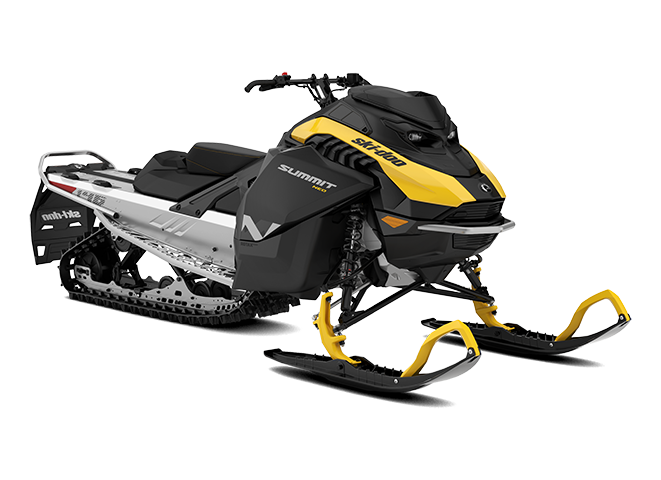

![neo-yellow--catalyst-grey-and-black]()
Designed to give more riders more opportunity to discover a love for the deep snow, Summit Neo delivers right-sized ergonomics and power for beginning riders or riders of smaller stature – but with a full-size fun factor.
-
Engine
Rotax® 600 EFI - 55 Engine
-
Rear suspension
Neo
-
Front suspension
RAS™ 3
-
Track
Cobra with FlexEdge™
-
Special features
Compact Digital Display
Engine Engine - 600 EFI - 55
Engine details - 600 EFI - 55 : Liquid-cooled, two-stroke
Engine Horsepower - 55
Cylinders & Displacement - 2 - 599.4 cc
Bore & stroke - 72.3 mm - 73 mm
Carburation - EFI
Fuel tank / Octane - Regular unleaded - 87
Fuel tank - 36 L / 9.5 US gal
Oil tank capacity (2-stroke) - 3.4 L / 3.6 qt
Dry Weight - 420 lb
Power Train Drive clutch / Driven clutch - pDrive™ / QRS Lite
Drive Sprocket Pitch - 73 mm / 2.86 in.
Dimensions Vehicle Overall Length - 3,174 mm / 125 in.
Vehicle Overall Width - 1,024 mm / 40.3 in. (adjustable)
Vehicle Overall Height - 1,095 mm / 43 in.
Ski Stance - 864 mm / 34 in. (adjustable)
Track Length x Width x Profile - Cobra with FlexEdge™:
146 x 14 x 1.6 in.
Suspensions Suspension option - Standard
Front suspension - RAS™ 3
Front shock - Motion Control
Front suspension travel - 196 mm / 7.7 in.
Rear suspension - Neo
Center shock - Torsion spring
Rear shock - Motion Control
Rear suspension travel - 220 mm / 8.7 in.
Feature Frame - REV® Gen4
Skis - Pilot™ DS 2
Seating - Deep snow compact
Handlebar - Narrow standard with J-hooks
Riser block height - 120 mm /4.7 in
Starter - Electric Starter
Reverse - RER™
Brake system - Brembo
Heated throttle lever grips - Standard
Gauge - 4.5-in. digital
Windshield - Optional
Runner / Carbide - Square 3/8 in. / Optional
Bumpers (Front / Rear) - Std / Std
-
-
2025Summit NEO+
-
Deep Snow
- Rotax® 600 EFI - 85 Engine
- REV® Gen4 Platform
- 146 x 15 x 1.75 in. Hurricane FlexEdge™ track
- KYB 36 Front Shocks
- Low mountain strap

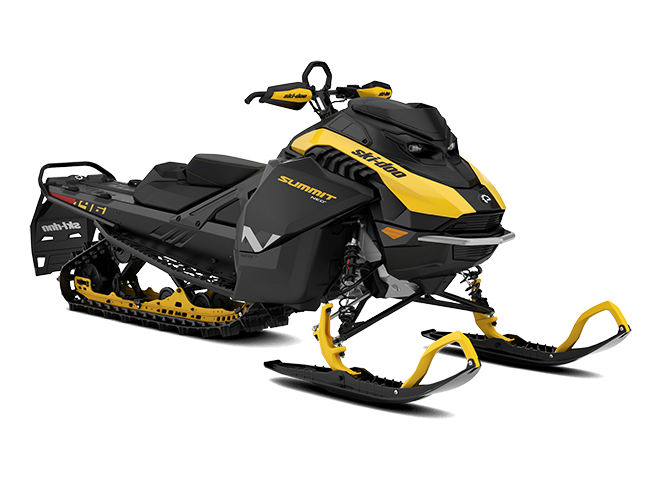

![timeless-black]()
Summit Neo+ uses the same philosophy as the Neo, with properly sized ergonomics, but adds 15 more horsepower, a wider track and a few more creature comforts riders of any skill set will appreciate - especially as their confidence and abilities grow.
-
Engine
Rotax® 600 EFI - 85 Engine
-
Rear suspension
Neo
-
Front suspension
RAS™ 3
-
Track
Hurricane with FlexEdge™
-
Special features
Compact Digital Display
Engine Engine - 600 EFI - 85
Engine details - 600 EFI - 85 : Liquid-cooled, two-stroke
Engine Horsepower - 85
Cylinders & Displacement - 2 - 599.4 cc
Bore & stroke - 72.3 mm - 73 mm
Carburation - EFI
Fuel tank / Octane - Regular unleaded - 87
Fuel tank - 36 L / 9.5 US gal
Oil tank capacity (2-stroke) - 3.4 L / 3.6 qt
Dry Weight - 427 lb
Power Train Drive clutch / Driven clutch - pDrive™ / QRS Lite
Drive Sprocket Pitch - 73 mm / 2.86 in.
Dimensions Vehicle Overall Length - 3,174 mm / 125 in.
Vehicle Overall Width - 1,024 mm / 40.3 in. (adjustable)
Vehicle Overall Height - 1,095 mm / 43 in.
Ski Stance - 864 mm / 34 in. (adjustable)
Track Length x Width x Profile - Hurricane with FlexEdge™:
146 x 15 x 1.75 in.
Suspensions Suspension option - Standard
Front suspension - RAS™ 3
Front shock - KYB 36 (Neo+)
Front suspension travel - 196 mm / 7.7 in.
Rear suspension - Neo
Center shock - Torsion spring
Rear shock - Motion Control
Rear suspension travel - 220 mm / 8.7 in.
Feature Frame - REV® Gen4
Skis - Pilot™ DS 2
Seating - Deep snow compact and lightweight
Handlebar - Narrow standard with J-hooks / Low grab handle / Flexible handguards
Riser block height - 120 mm /4.7 in
Starter - Electric Starter
Reverse - RER™
Brake system - Brembo
Heated throttle lever grips - Standard
Gauge - 4.5-in. digital
Windshield - Optional
Runner / Carbide - Square 3/8 in. / Optional
Bumpers (Front / Rear) - Std / Std
-
Download spec sheet
